Technical Values

Location	Description	Type	Basic value
Nuts on pedestrian protection (support)	Item 2	Tightening torque	4.5 Nm (3.25 ftlb.)

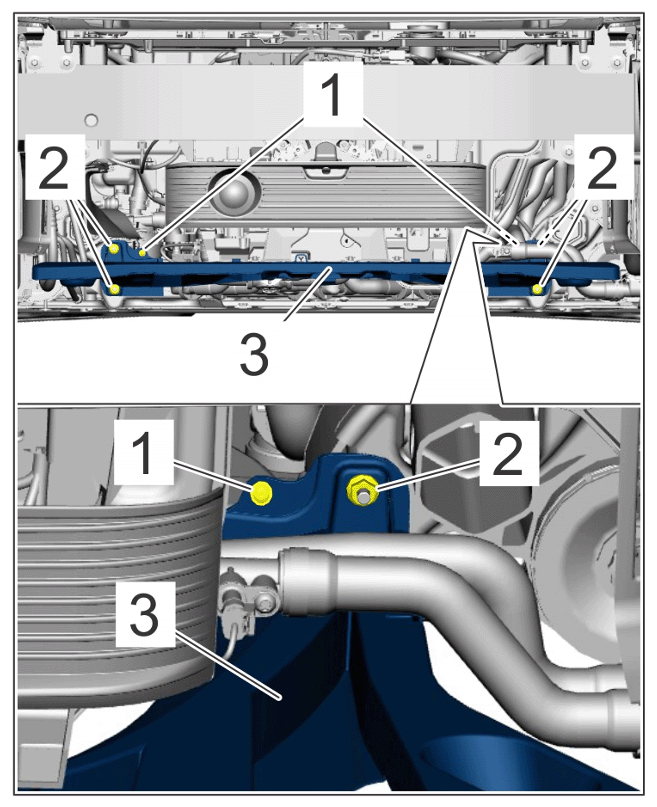

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Pedestrian protection (support)
Screw securing refrigerant line to condenser	Item 3	Tightening torque	8 Nm (6 ftlb.)

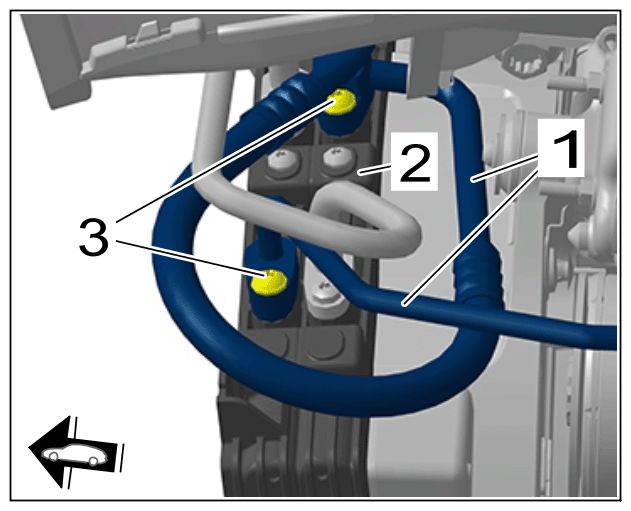

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant lines on condenser
Screw securing condenser fan to body		Tightening torque	8 Nm (6 ftlb.)

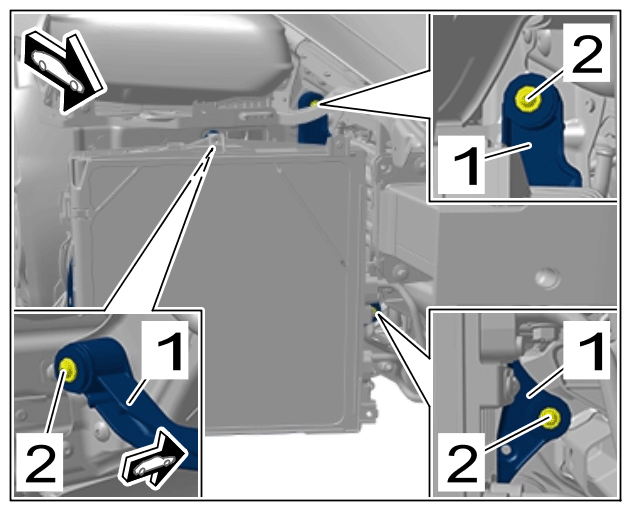

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Condenser fan housing on body
Screw securing air guide to condenser frame	Item 3	Tightening torque	2.5 Nm (1.75 ftlb.)

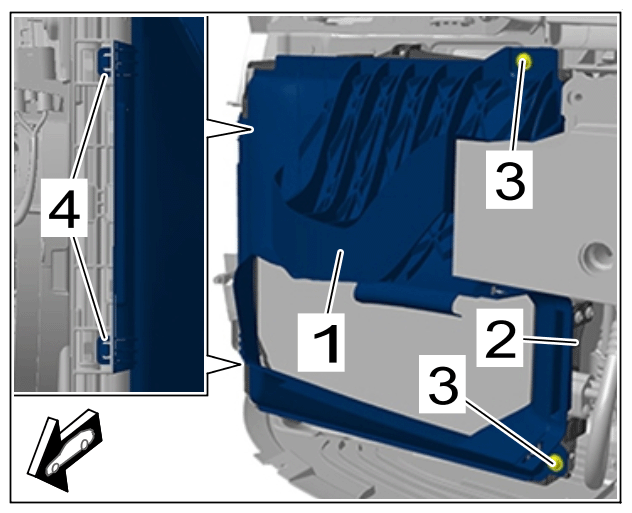

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air guide for condenser
Front-axle carrier to body	Initial tightening/Screw/Item 2 to 4/Always replace screws following removal	Tightening torque	70 Nm (52 ftlb.)

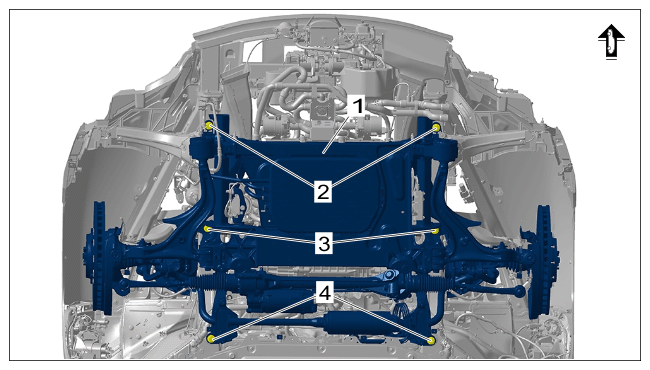

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front axle
Front-axle carrier to body	Final tightening/Screws/Item 2 to 4/Always replace screws following removal	Torque angle	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front axle
Line bracket to wheel bearing housing	Screws/Item 3 and 4	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Power-steering gear to front-axle carrier	Initial tightening/Screws/Item 4/Always replace screws following removal.	Tightening torque	70 Nm (52 ftlb.)

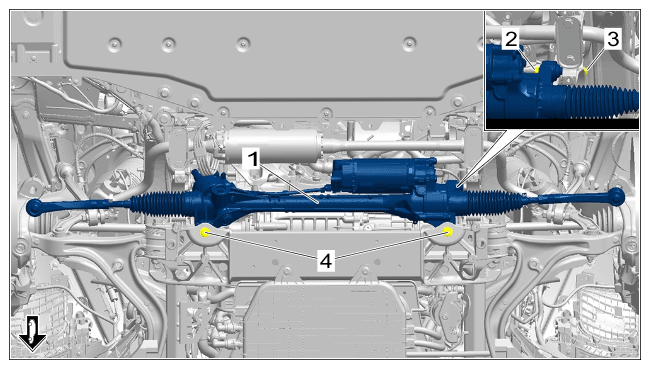

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier	Final tightening/Screws/Item 4/Always replace screws following removal.	Torque angle	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier at the sides	Initial tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power-steering gear to front-axle carrier at the sides	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Steering shaft to power-steering gear	Initial tightening/Screw/Item 2/Always replace screw following removal.	Tightening torque	20 Nm (15 ftlb.)

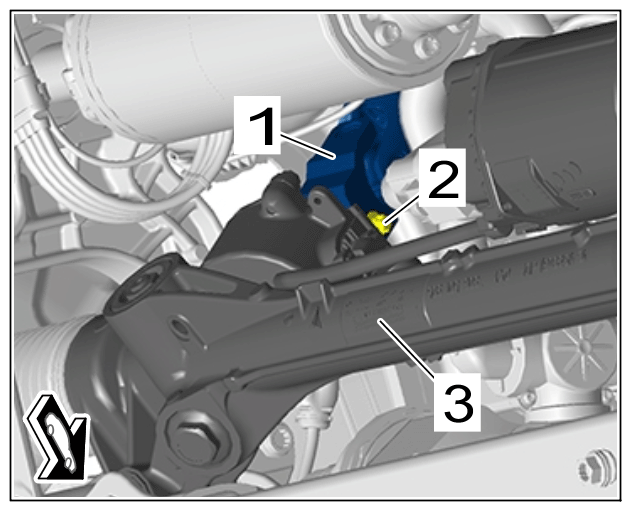

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column
Steering shaft to power-steering gear	Final tightening/Screw/Item 2/Always replace screw following removal.	Torque angle	90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column
Air-spring strut to body	Initial tightening/Nuts/Item 3/Always replace nuts following removal	Tightening torque	40 Nm (30 ftlb.)

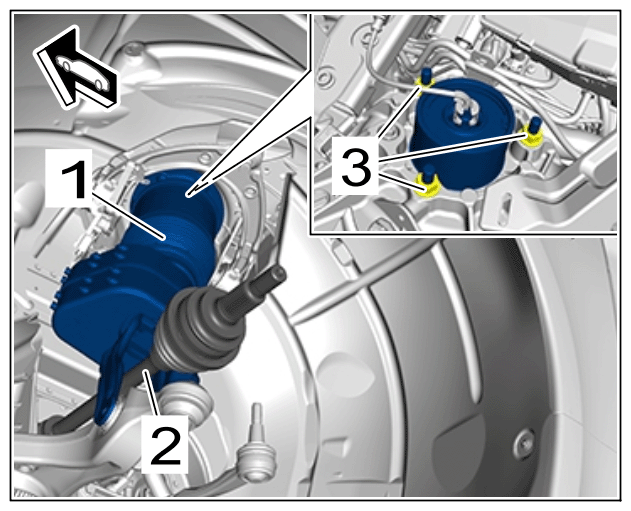

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air-spring strut and drive shaft
Air-spring strut to body	Final tightening/Nuts/Item 3/Always replace nuts following removal	Torque angle	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air-spring strut and drive shaft
Air line to front air-spring strut	Voss threaded joint -Item 3	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air line on air-spring strut
Upper trailing arm clamp on wheel bearing housing	Initial tightening/Nut/Item 3/Always replace threaded connection following every removal.	Tightening torque	20 Nm (14.8 ftlb.)

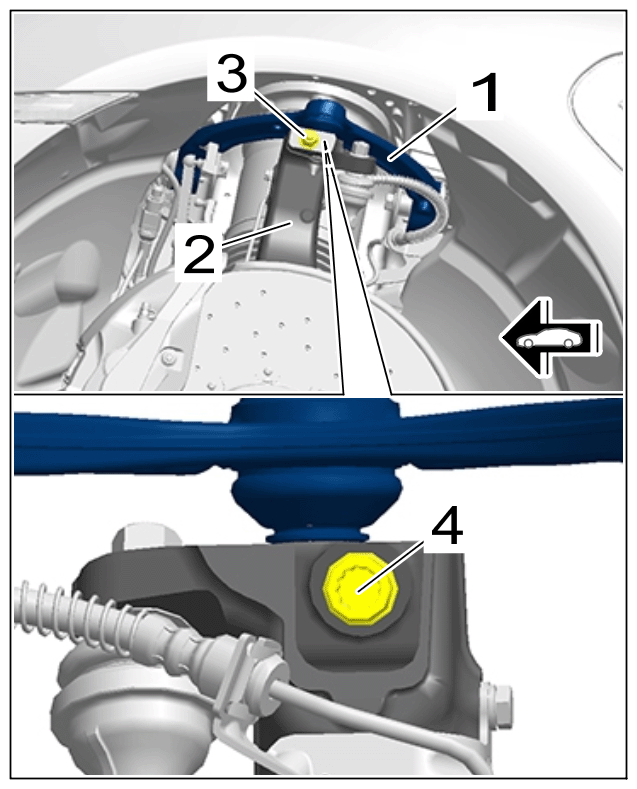

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper trailing arm on wheel bearing housing
Upper trailing arm clamp on wheel bearing housing	Final tightening/Nut/Item 3/Always replace threaded connection following every removal.	Torque angle	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper trailing arm on wheel bearing housing
Nut securing holder for electric air-conditioning compressor to decoupling element	Item 3	Tightening torque	8 Nm (6 ftlb.)

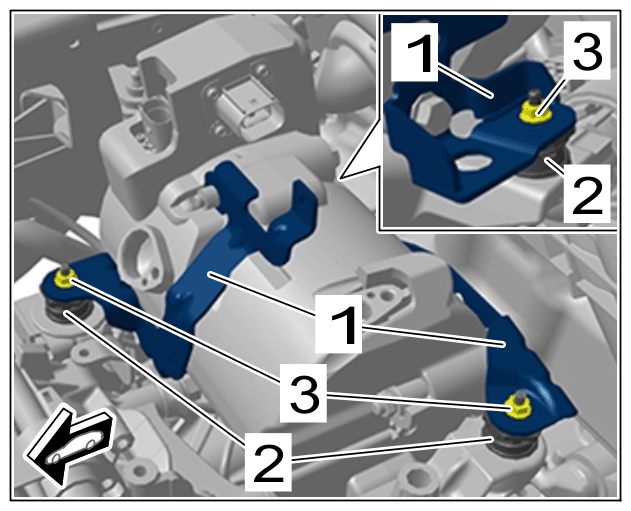

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric air-conditioning compressor holder to decoupling element
Screw securing equipotential bonding line to electric air-conditioning compressor	Item 3	Tightening torque	8 Nm (6 ftlb.)

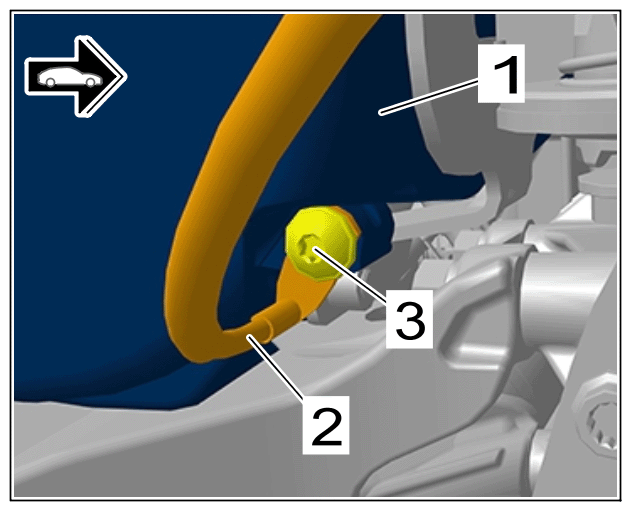

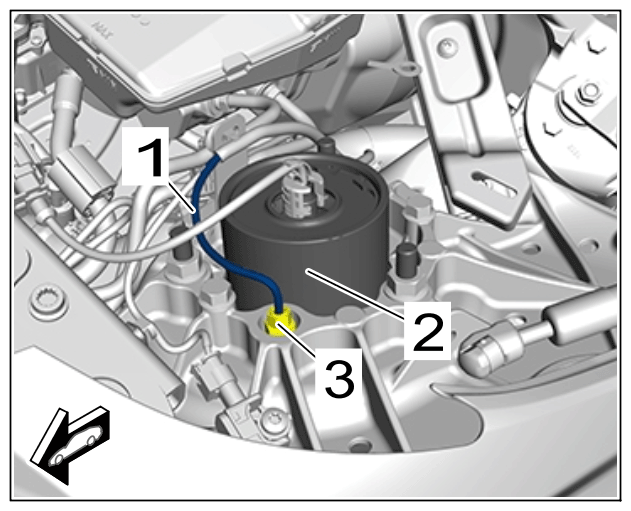

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Equipotential bonding line to air-conditioning compressor
Screw for coolant pump holder	M6 x 35	Tightening torque	8 Nm (6 ftlb.)
Screw for coolant distributor for high-voltage system	M6	Tightening torque	8 Nm (6 ftlb.)
Screw securing holder for coolant distributor for high-voltage system to cross member	M6 x 25	Tightening torque	8 Nm (6 ftlb.)
Screw securing holder to coolant distributor for high-voltage system	TP6 x 16	Tightening torque	2 Nm (1.5 ftlb.)
Directional-control valve to holder	Screw, M6 x 32	Tightening torque	8 Nm (6 ftlb.)
Holder for cooling switch-over valve (UVW1)	Item 2/Screw, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

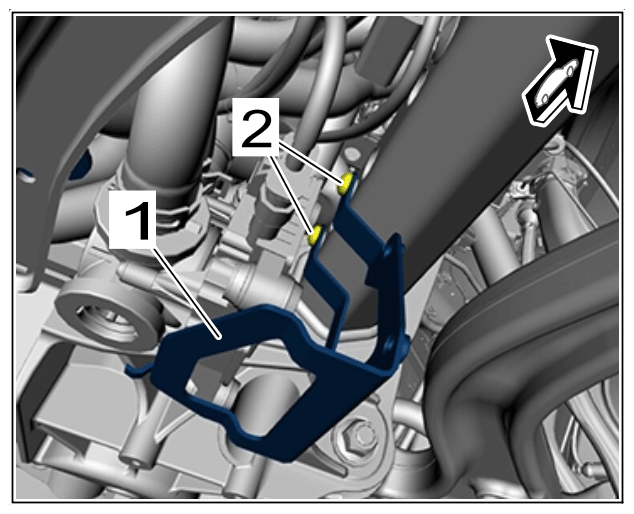

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Directional-control valve holder
Coolant pump holder	Item 6/Screw, M6x40	Tightening torque	8 Nm (6 ftlb.)

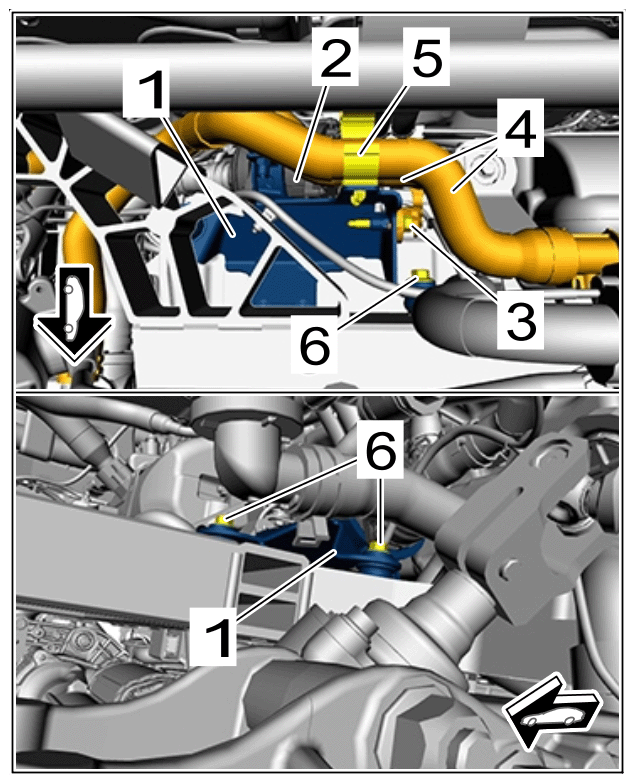

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder with coolant pump (P2)
Holder for coolant hose to coolant pump holder	Item 3/M6 screw	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder with coolant pump (P2)
Holder for coolant hose for high-voltage battery to bodyshell	Item 3/M6 screw	Tightening torque	8 Nm (6 ftlb.)

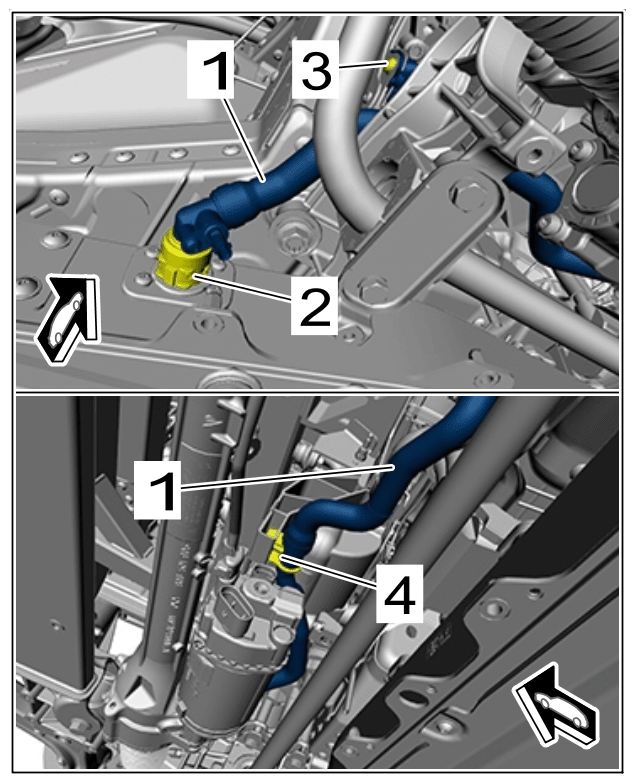

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant hose for high-voltage battery
