Subsequent Work

> 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT (REAR SECTION)

> 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT (FRONT SECTION)

> 473909 LOOSENING AND SECURING BRAKE CALLIPER FRONT

> 505619 REMOVING AND INSTALLING WHEEL HOUSING LINER FRONT

> 440519 REMOVING AND FITTING WHEEL

1. 6.1  Fit and tighten screws -2-  .

   > Tightening torque 8 Nm (6 ftlb.)

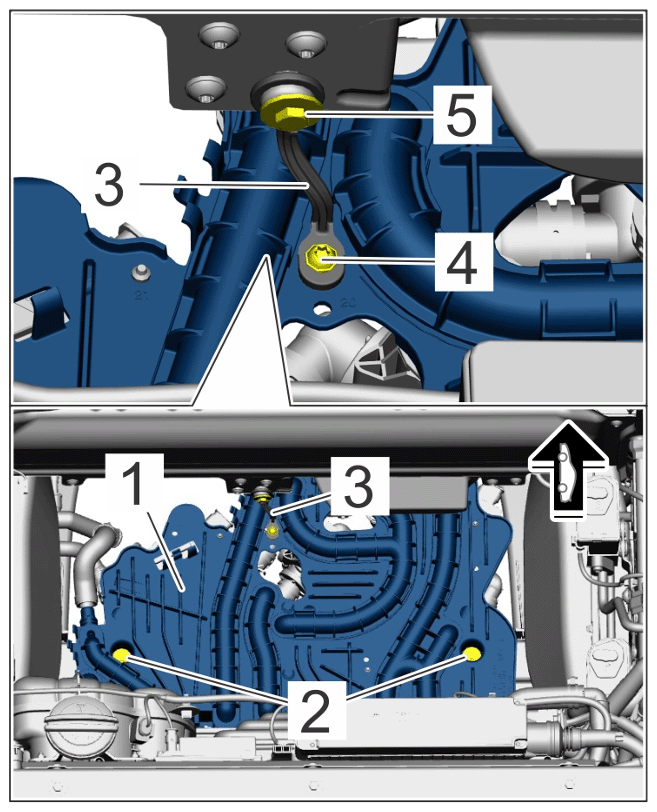

2. 6.2  Secure bracket -3-  .
   1. 6.2.1  Screw in and tighten screws -4-

      > Tightening torque 2 Nm (1.5 ftlb.)

   2. 6.2.2  Fit and tighten screws -5-  .

      > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws for coolant distributor for high-voltage system

> 501919 REMOVING AND INSTALLING LUGGAGE COMPARTMENT LINER

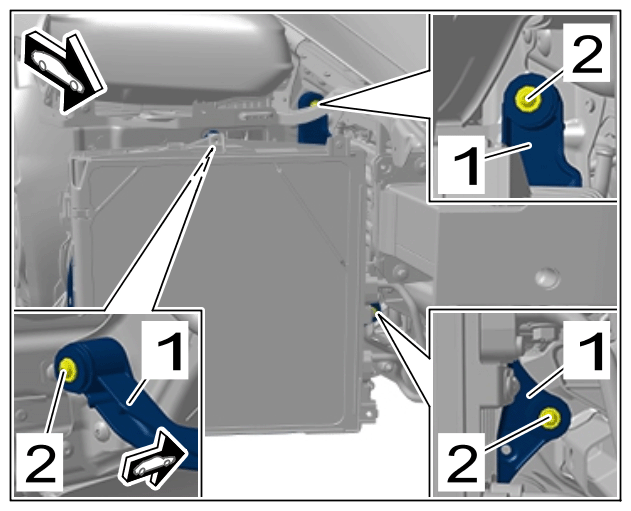

1. 8.1  Position condenser -1-  fan housing on body, then fit and tighten screws -2-  .

   > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Condenser fan housing on body

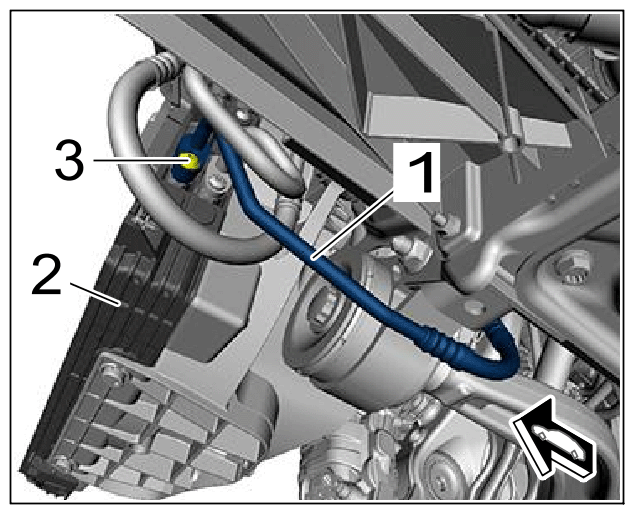

2. 8.2  Attach refrigerant line -1-  to condenser -2-  , then fit and tighten screw -3-  .

   > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Refrigerant line on condenser lower left

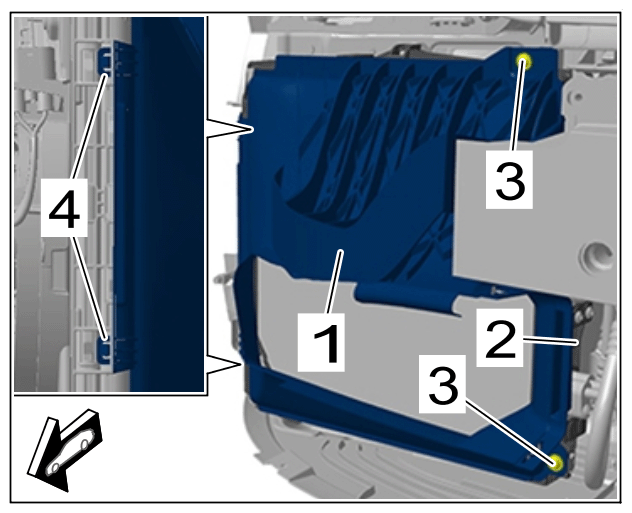

3. 8.3  Remove air guide -1-  on the condenser frame -2-  .
   1. 8.3.1  Fit and tighten screws -3-  .

      > Tightening torque 2.5 Nm (1.75 ftlb.)

   2. 8.3.2  Unclip clips -4-  and remove air guide -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Air guide for condenser

> 197019 REMOVING AND INSTALLING RADIATOR

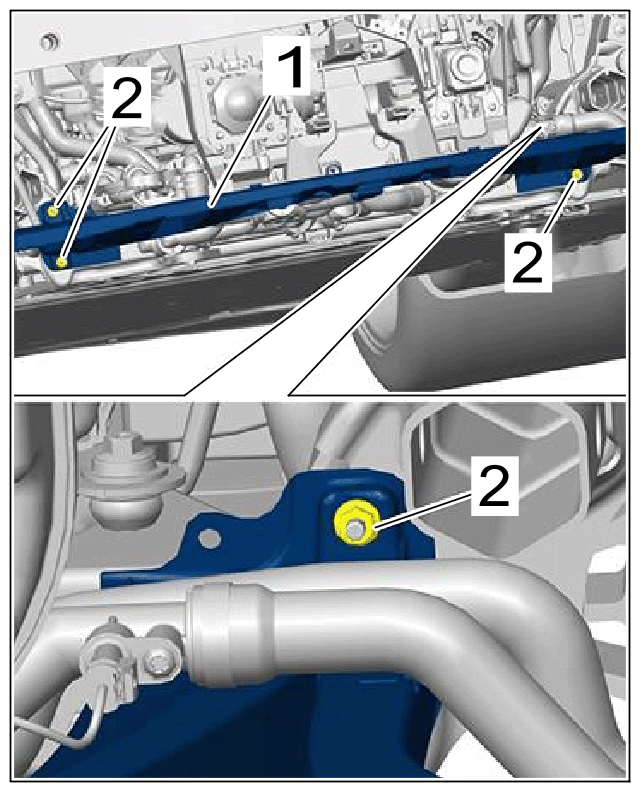

1. 10.1  Position pedestrian protection support -1-  , then fit and tighten nuts -2-  .

   > Tightening torque 4.5 Nm (3.25 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pedestrian protection support

> 631519 REMOVING AND INSTALLING FRONT BUMPER

> 461619 REMOVING AND INSTALLING BRAKE-DISC AIR GUIDE (FRONT)

> 870317 DRAINING AND TILLING REFRIGERANT R134A

> 870317 DRAINING AND TILLING REFRIGERANT R1234YF

> 193817 DRAINING AND TILLING COOLANT

> 2X00IN STARTING HIGH-VOLTAGE SYSTEM

16 Only for vehicles with air suspension system:

Fill the level control.

> 430117 BLEEDING AND TILLING THE LEVEL CONTROL

> 449503 PERFORMING VEHICLE FRONT AND REAR SUSPENSION ALIGNMENT
