Installing Front Axle

WARNING: Incorrect handling of high-voltage components
  • Electric shock
  • Short circuit
  • Fire
  • Explosion
    • Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.
    • Required qualification: High voltage technician or high voltage expert.
    • Observe national requirements and legislation for this work.
    • Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set  when working on these components. Observe general warning notes for working on the high-voltage system.
    • > 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    • Secure components to prevent them from falling down.
CAUTION: Heavy components
  • Risk of squashing
    • Wear personal protective gear.
    • Get someone to help if necessary.

Information

Information

  1. Install front axle -1-  .

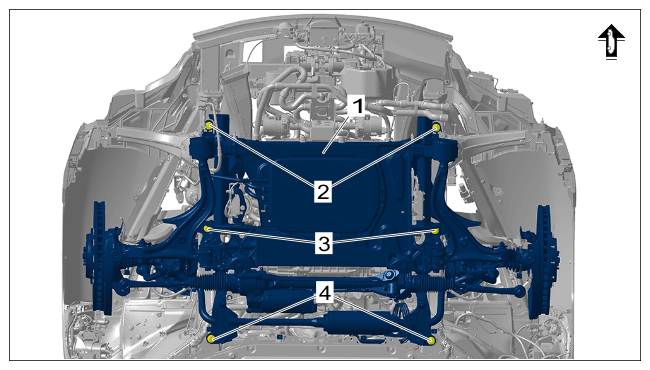

    G15552455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front axle (shown on the Taycan S)

    1. 1.1  Place > VAS 6832/8 - universal assembly device  as described under Tool information and secure on the > VAS 6832 - Master Gear unit elevating platform  .
    2. 1.2  Position front axle -1-  on > VAS 6832/8 - universal assembly device  with the help of another person.
    3. 1.3  Position > VAS 6832 - Master Gear unit elevating platform  under the front-axle carrier -1-  , then carefully move the front axle with spring strut or air-spring strut into installation position and get another person to help guide it.
    4. 1.4  Fit and tighten new screws -2 to 4-  .

      > Tightening torque 70 Nm (52 ftlb.)

      > Torque angle + 180 °

    5. 1.5  > VAS 6832 - Master Gear unit elevating platform  can now be lowered.
  2. Secure air-conditioning compressor -1-  on front axle.

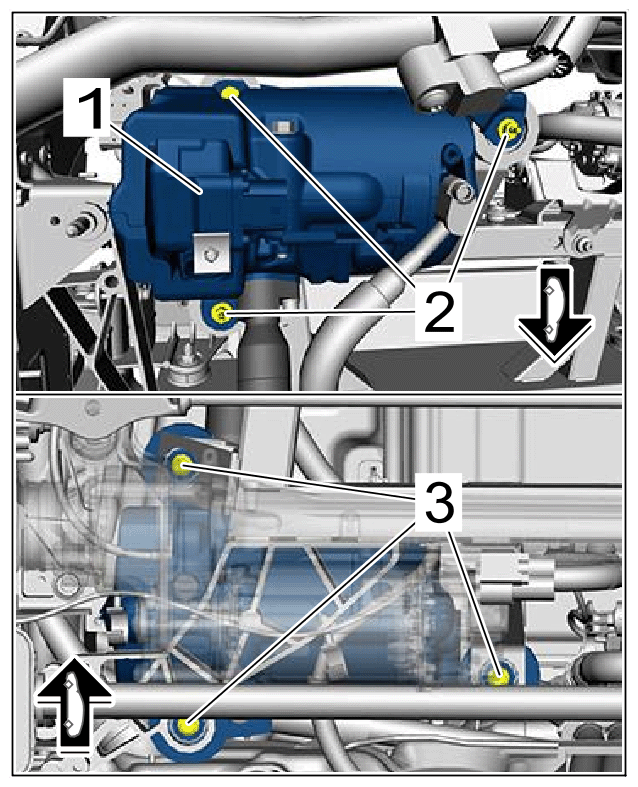

    G15552456Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air-conditioning compressor

    1. 2.1  Screw on and tighten nuts -2-  and counter at the screws -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

  3. Remove mounting lever HAZET 650-20
  4. Attach electric line -2-  to air-conditioning compressor -1-  .

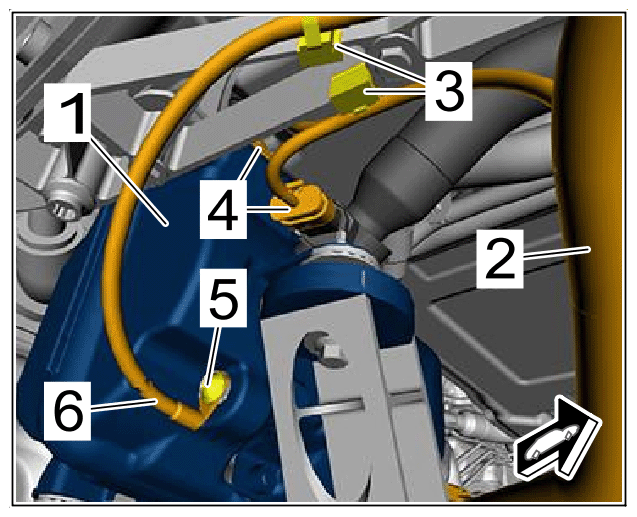

    G15552457Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line on air-conditioning compressor

    1. 4.1  Attach equipotential bonding line -6-  , then fit and tighten screw -5-  .

      > Tightening torque 8 Nm (6 ftlb.)

    2. 4.2  Connect and lock cable plug -4-  .
    3. 4.3  Clip in clips -3-  .
  5. Install power-steering gear -1-  .
    1. 5.1  Position power-steering gear -1-  in the supports.
    2. 5.2  Screw in new  screws -4-  .
    3. 5.3  Insert new  screw -3-  .
    4. 5.4  Screw on and tighten new  nut -2-  and counter at screw -3-  .

      > Tightening torque 20 Nm (15 ftlb.)

      > Torque angle + 180 °

    5. 5.5  Tighten the screws -4-  .

      > Tightening torque 70 Nm (52 ftlb.)

      > Torque angle + 180 °

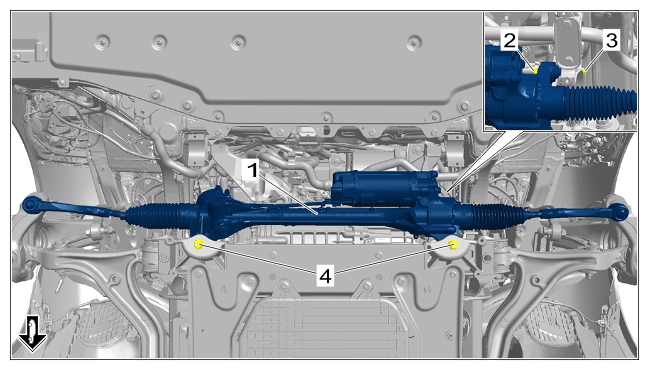

      G15552458Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Power-steering gear

  6. Connect universal joint for steering column -1-  .

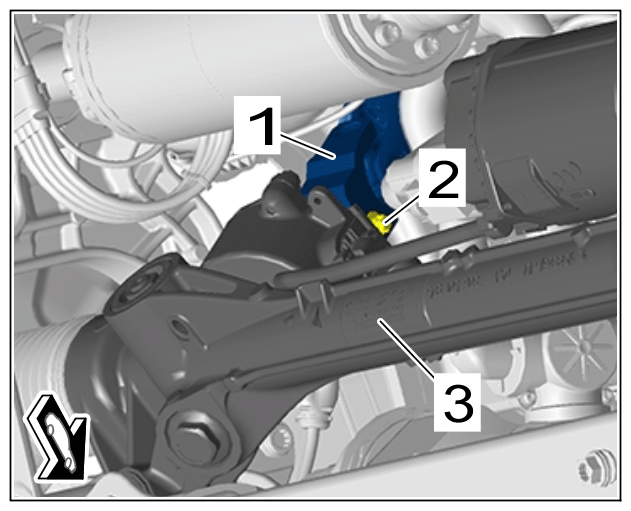

    G15552459Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Universal joint for steering column (shown on the Taycan S)

    1. 6.1  Connect universal joint for steering column -1-  to the power-steering gear -3-  .
    2. 6.2  Fit and tighten new  screw -2-  .

      > Tightening torque 20 Nm (15 ftlb.)

      > Torque angle 90 °

  7. Secure coolant hose on HV battery -1-  befestigen.

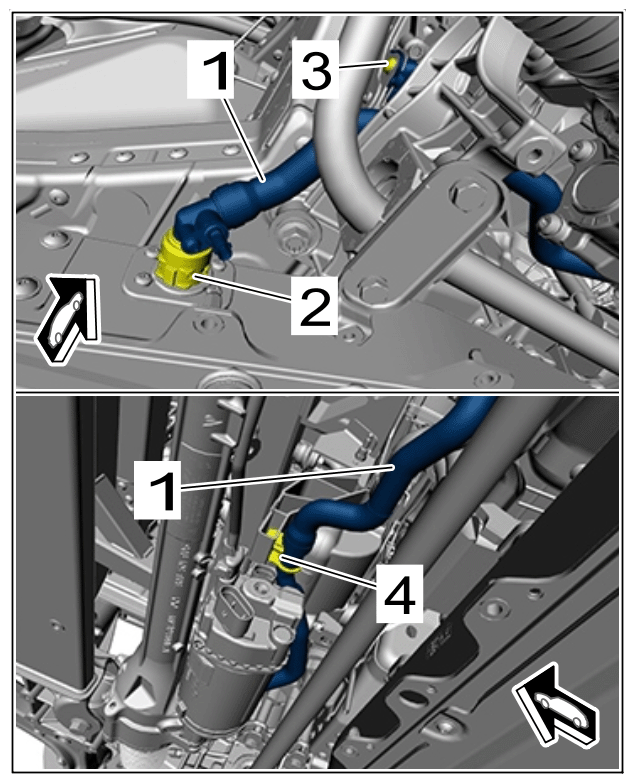

    G15552460Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hose on HV battery

    1. 7.1  Position coolant hose on HV battery -1-  .
    2. 7.2  Connect and lock plug-in coupling -2-  .
    3. 7.3  Fit and tighten screw -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

    4. 7.4  Clip in holder for HV battery coolant hose -4-  .
  8. Attach electric wire harness for power-steering gear -1-  to front axle.

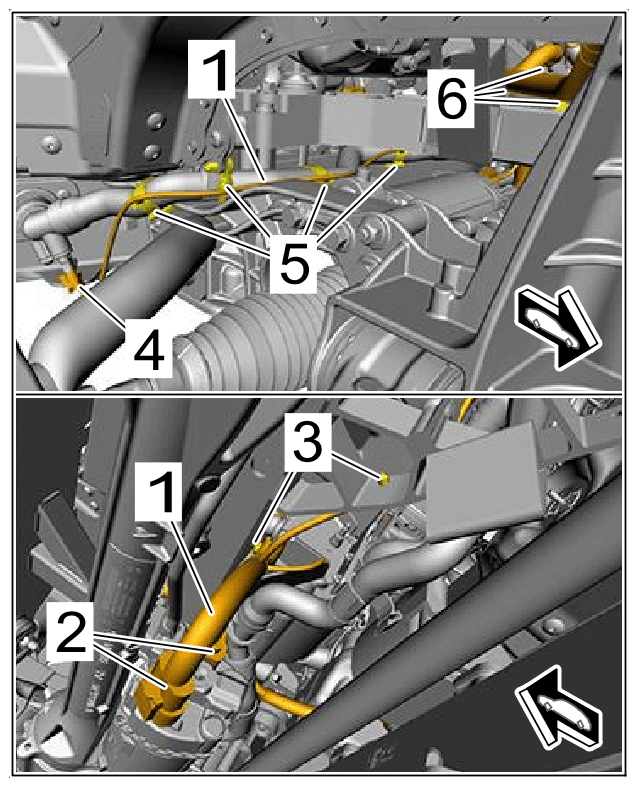

    G15552461Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for power-steering gear

    1. 8.1  Position electric wire harness for power-steering gear -1-  on front axle.
    2. 8.2  Push on and lock cable plug for HV battery temperature sensor -4-  .
    3. 8.3  Clip in clips -5 and 6-  .
    4. 8.4  Push on and lock cable plug for power-steering gear -2-  .
    5. 8.5  Clip in clips -3-  .
  9. Connect electrical line to 12V HV battery -1-  .

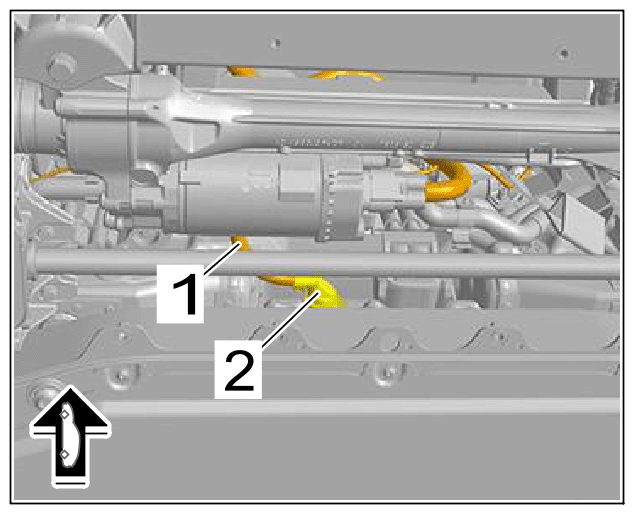

    G15552462Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electrical line on 12 V HV battery

    1. 9.1  Connect and lock cable plug -2-  .
  10. Attach holder -1-  with coolant pump (P2) -2-  to front axle.

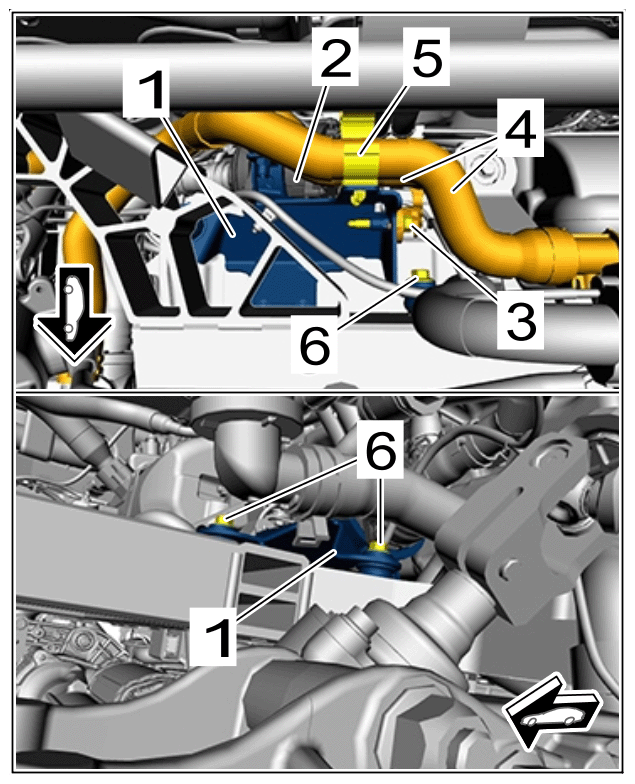

    G15552463Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder with coolant pump (P2)

    1. 10.1  Position holder -1-  with coolant pump (P2) -2-  .
    2. 10.2  Fit and tighten screws -6-  .

      > Tightening torque 8 Nm (6 ftlb.)

    3. 10.3  Clip coolant hose -4-  into holder -5-  .
    4. 10.4  Fit and tighten screw -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

      Information

      The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  11. Attach spring strut -1-  to spring-strut dome.
    G15552464Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spring strut to spring strut dome

    1. 11.1  Screw on new  nuts -2-  , but do not tighten yet.

      Information

      Check the following before installing the air line:

      • Check that the cutting ring -1-  and Voss threaded joint -2-  are still on the air line -3-  .
      • Check that the air line is fitted correctly.

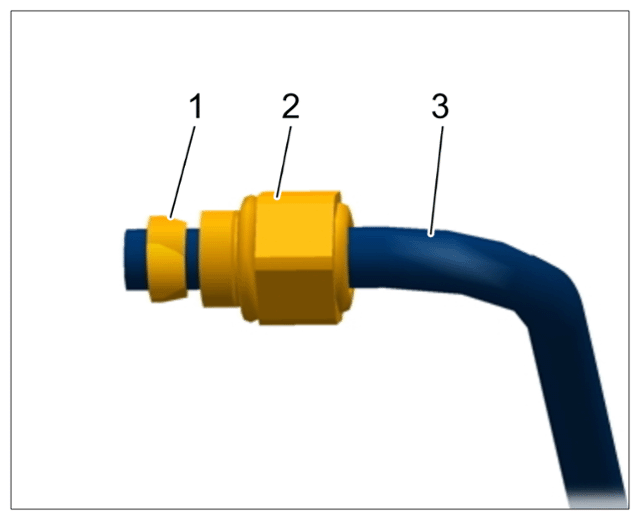

        G15552465Courtesy of PORSCHE CARS NORTH AMERICA, INC.

        Checking air line

        Only one marking -1-  on the air line should be visible.

        Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

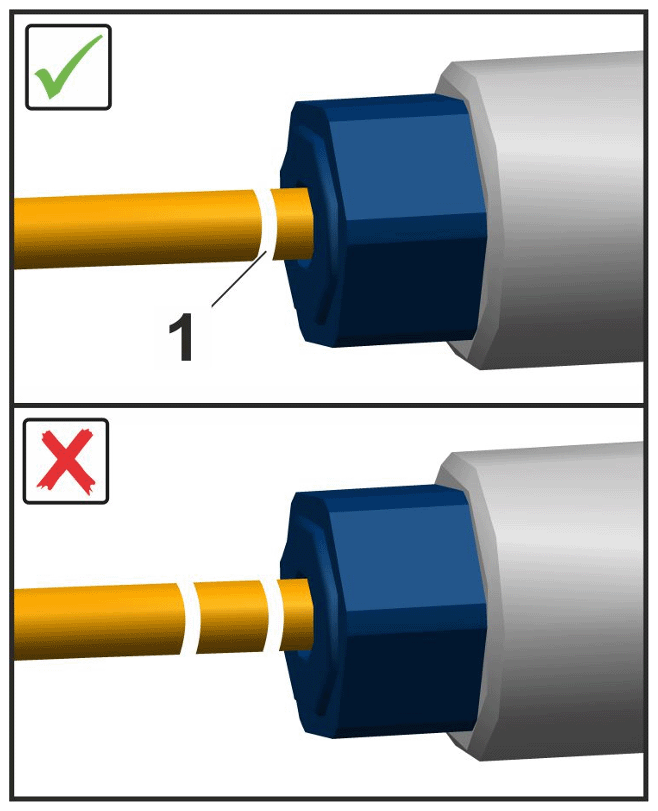

        G15552466Courtesy of PORSCHE CARS NORTH AMERICA, INC.

        Checking that air line is fitted correctly

        Information

        The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  12. Only for vehicles with air suspension system:

    Secure air line -3-  on air-spring strut -2-  .

    1. 12.1  Connect air line -1-  and tighten Voss threaded joint on the air line -3-  .

      > Tightening torque 3 Nm (2 ftlb.)

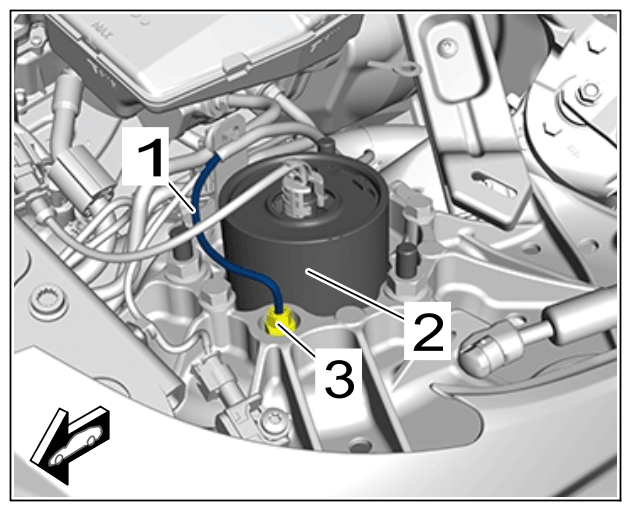

      G15552467Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Air line on air-spring strut

      Information

      The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  13. Only for vehicles with air suspension system:

    Connect electric lines -1-  to air-spring strut -2-  .

    1. 13.1  Clip electric line -1-  into the holder -4-  .
    2. 13.2  Connect and lock cable plug -3-  .

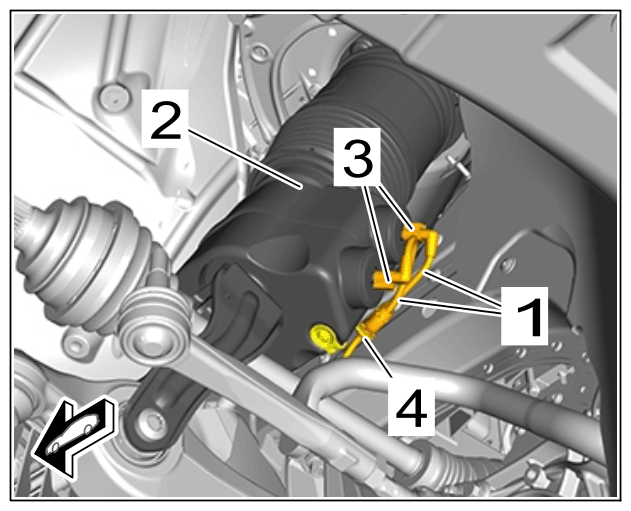

      G15552468Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Air-spring strut cable plug

      Information

      The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

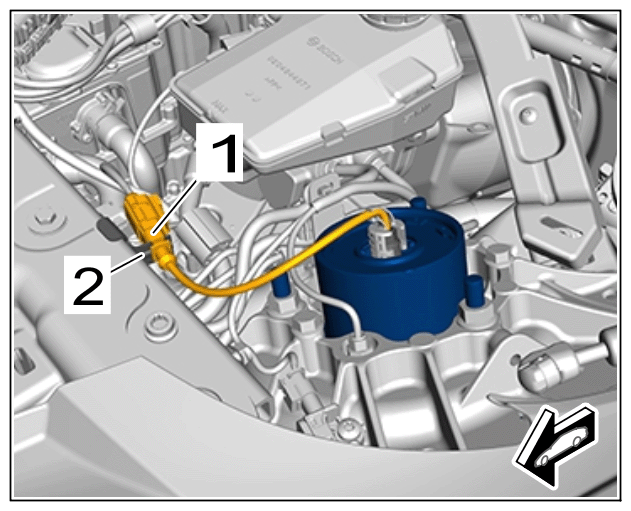

  14. Clip top air-spring strut cable plug -1-  into holder -2-  , insert and lock.
    G15552469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air-spring strut cable plug

    Information

    The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  15. Secure upper trailing arms -1-  to the wheel bearing housing -2-  .

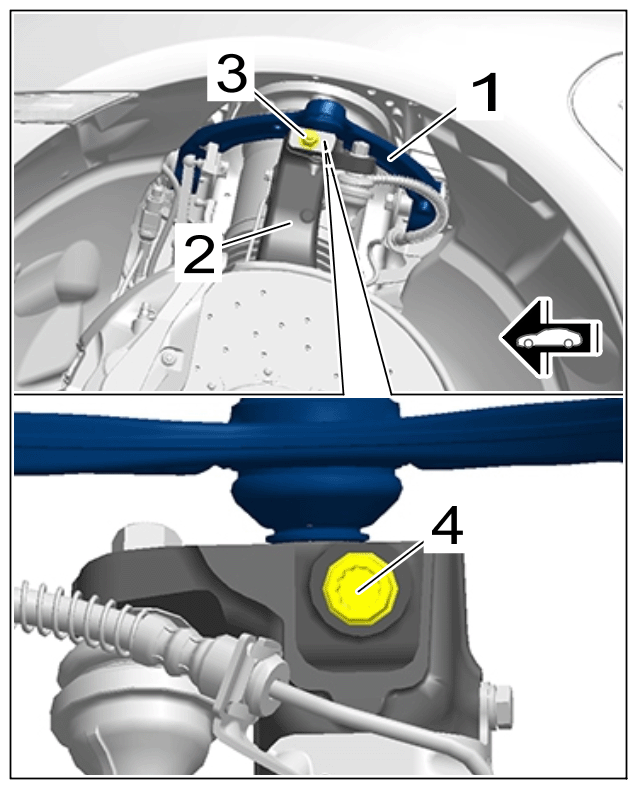

    G15552470Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper trailing arms on wheel bearing housing

    1. 15.1  Position upper trailing arm -1-  in wheel bearing housing -2-  and insert new  screw -4-  .
    2. 15.2  Screw on new  nut -3-  , but do not tighten yet.

      Information

      Threaded joints must only be tightened in zero position to prevent warping in the bearings.

  16. Lift the wheel bearing housing as far as required using the > VAS 6931 - engine and gearbox jack  until the lower trailing arm is horizontal. > Zero position (similar to illustration)
    1. 16.1  For vehicles with air spring system, observe the description for draining and filling the air-spring struts prior to lifting to zero position!

      > 433019 REMOVING AND INSTALLING FRONT AIR-SPRING STRUT

      G15552471Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Zero position (similar to illustration)

      Information

      The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  17. Tighten nuts -2-  .

    > Tightening torque 40 Nm (30 ftlb.)

    > Torque angle + 45 °

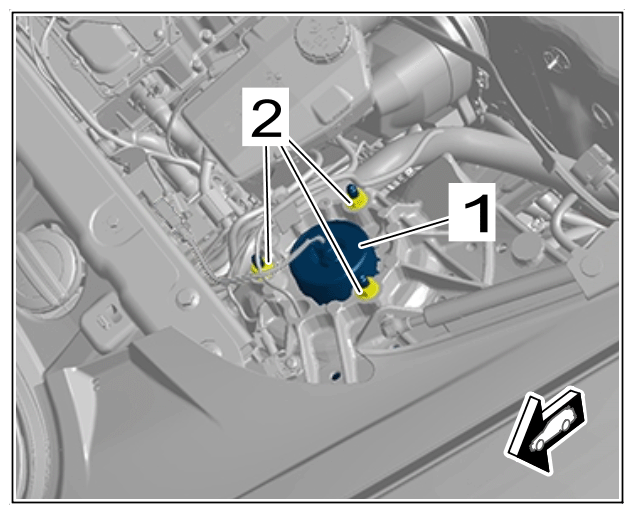

    G15552472Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spring strut to spring strut dome

    Information

    The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  18. Tighten nut -3-  and counter at screw -4-  .

    > Tightening torque 20 Nm (14.8 ftlb.)

    > Torque angle + 45 °

    G15552473Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper trailing arms on wheel bearing housing

  19. Lower > VAS 6931 - engine and gearbox jack  .

    Information

    The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  20. Secure wire harness holder -1-  .

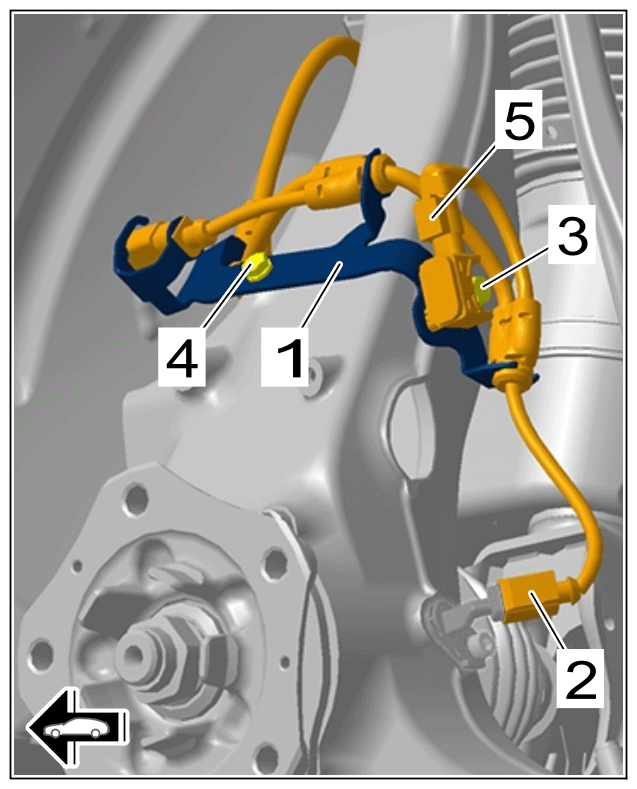

    G15552474Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness holder (shown on the Taycan S)

    1. 20.1  Position wire harness holder -1-  together with the wire harness -5-  .
    2. 20.2  Fit and tighten screws -3 and 4-  .

      > Tightening torque 8 Nm (6 ftlb.)

    3. 20.3  Connect and lock cable plug -2-  .
  21. Install directional-control valve holder -1-  .

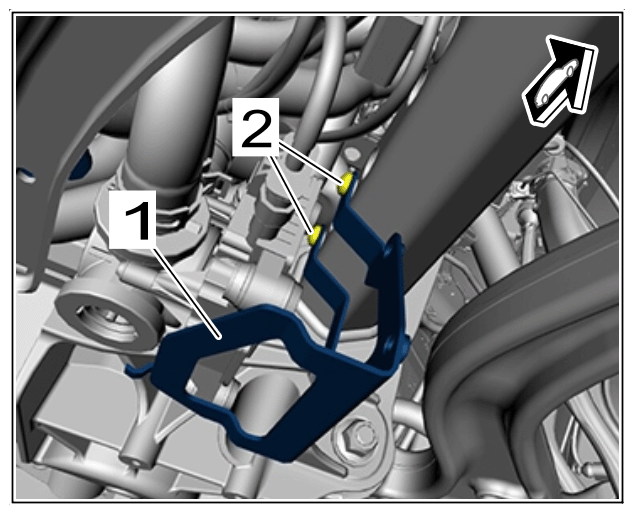

    G15552475Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Directional-control valve holder

    1. 21.1  Position directional-control valve holder -1-  .
    2. 21.2  Fit and tighten screws -2-  .

      > Tightening torque 8 Nm (6 ftlb.)

  22. Attach directional-control valve -1-  to directional-control valve holder -2-  .

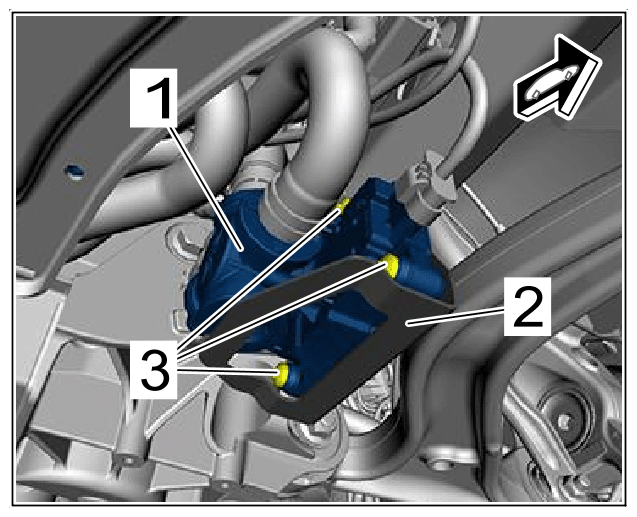

    G15552476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Directional-control valve

    1. 22.1  Position directional-control valve -1-  .
    2. 22.2  Fit and tighten screws -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

  23. Attach holder -1-  with coolant pump (P1) -2-  to front axle.

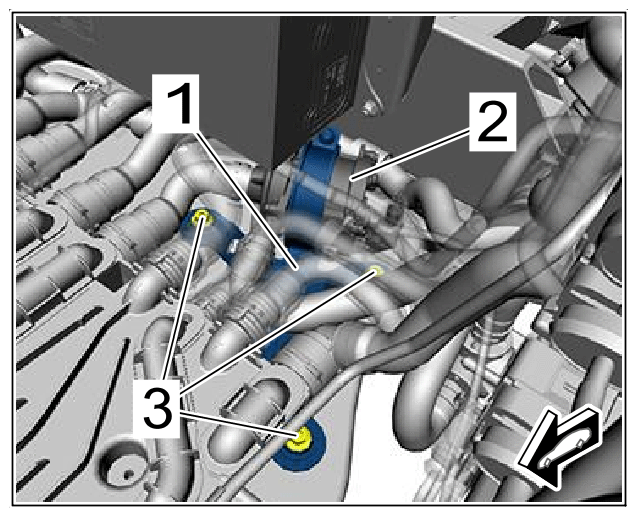

    G15552477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder with coolant pump (P1)

    1. 23.1  Position holder -1-  with coolant pump (P1) -2-  .
    2. 23.2  Fit and tighten screws -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

  24. Attach holder -1-  with coolant pump (P5) -2-  to front axle.

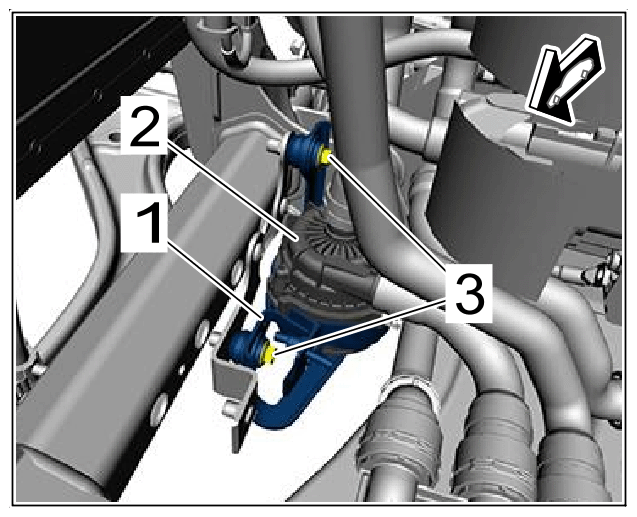

    G15552478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder with coolant pump (P5)

    1. 24.1  Position holder -1-  with coolant pump (P5) -2-  .
    2. 24.2  Fit and tighten screws -3-  .

      > Tightening torque 8 Nm (6 ftlb.)
