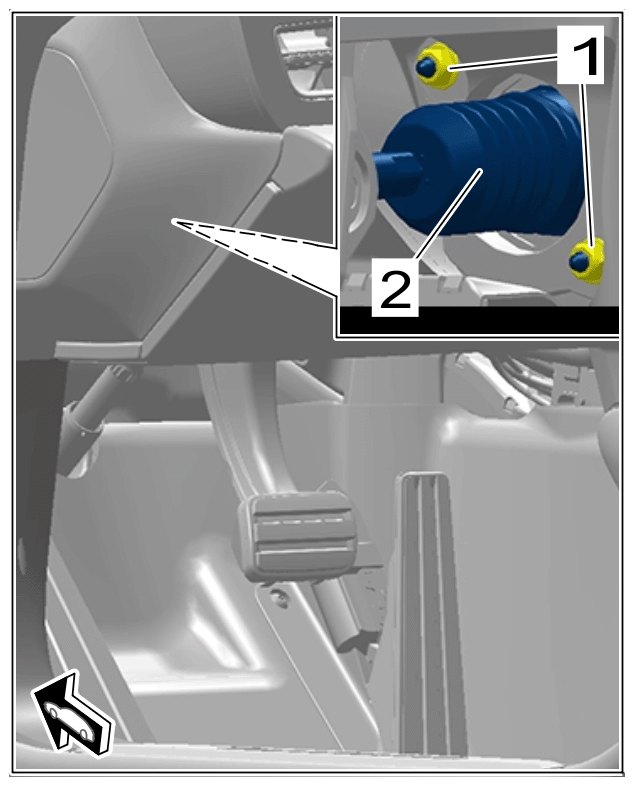

| Nuts for brake booster |
Item 1 |
Tightening torque |
25 Nm (19 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts on brake booster |
| Brake lines to brake master cylinder |
(Union nuts) Item 1 |
Tightening torque |
18 Nm (13 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Brake lines |
