Installing Brake Booster
- Poisonous if swallowed!
- Irritation and damage to skin
- Avoid contact with paint surfaces
→ Store brake fluid in suitable, labelled containers only
→ Wear protective gloves and goggles
→ In the event of contact (eyes or skin), wash immediately with water
→ In the event of contact with paint surfaces, wash off immediately with water - do not wipe off
Information
The brake booster must not be handled in the input rod/bellows area.

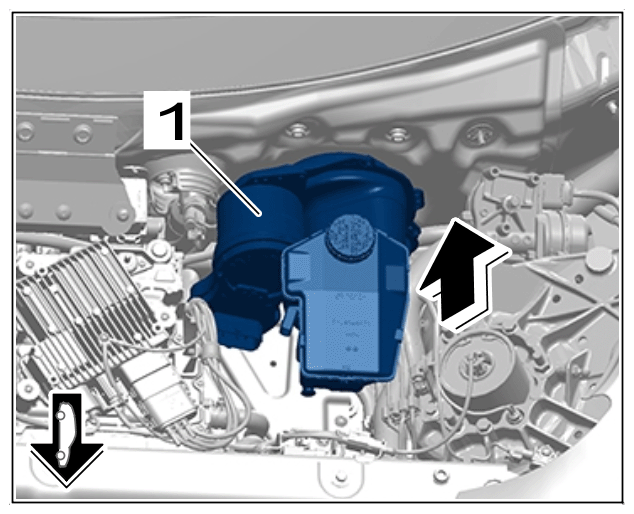

- Install brake booster -1-
with new seal.
- 1.1 Carefully insert brake booster push rod in direction of -arrow- .
- 1.2 Position brake booster -1- .
Brake booster
Information
Always replace brake boosters on which the push rod has pushed past the brake pedal clip and the screws have been tightened to their final tightening torque.

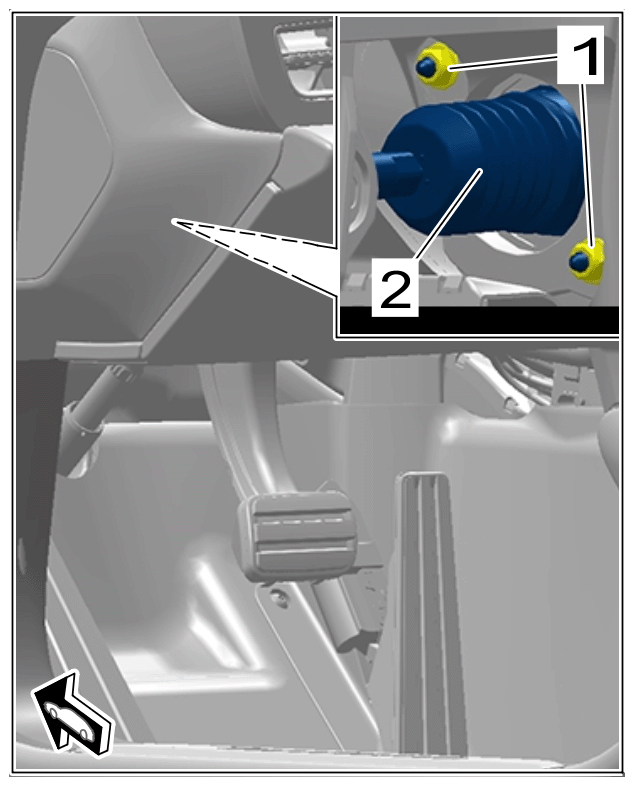

- Screw on and tighten nuts -1-
on brake booster -2-
.
> Tightening torque 25 Nm (19 ftlb.)
Nuts on brake booster

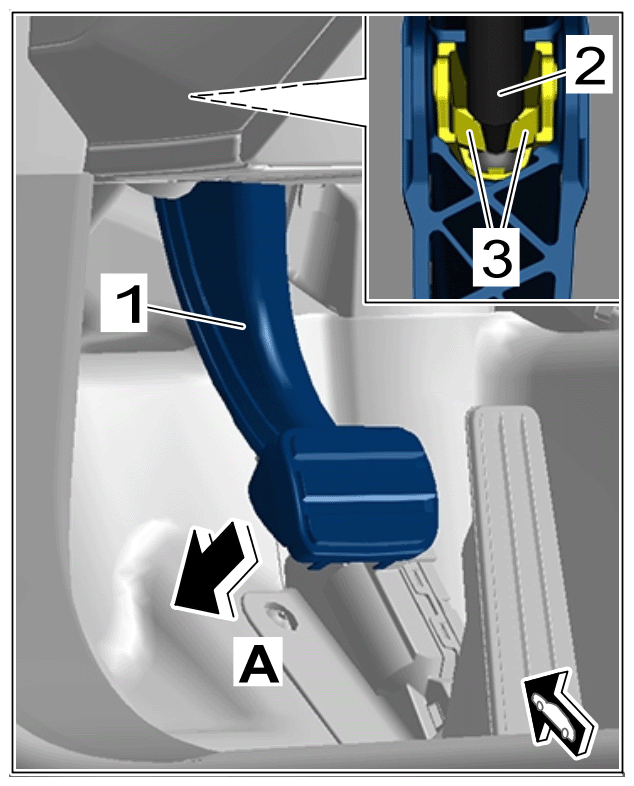

- Connect brake pedal -1-
to brake booster ball joint mounting -2-
.
- 3.1 Position brake booster ball joint mounting -2- on retaining lugs on the ball joint mounting -3- .
- 3.2 Press the brake pedal -1- towards the brake booster with your hand -arrow A- until the brake booster ball joint mounting -2- engages securely in the retaining lugs on the ball joint mounting -3- .
Brake booster push rod on brake pedal

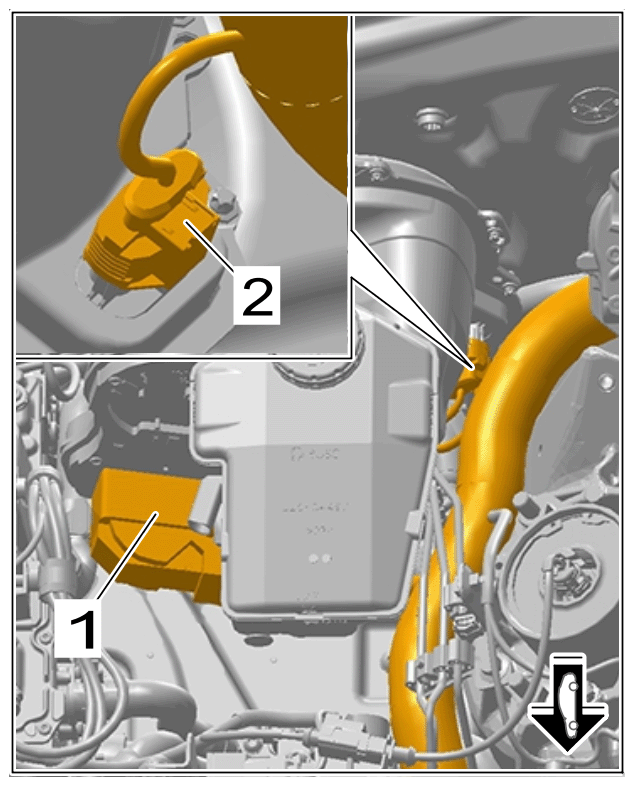

- Push on and lock electric plug connections for brake booster -1 and 2-
.
Electric plug connections for brake booster
Information
The stoppers must not be removed until immediately before guiding on the brake pressure lines.
Information
Make sure not to get the brake lines mixed up.

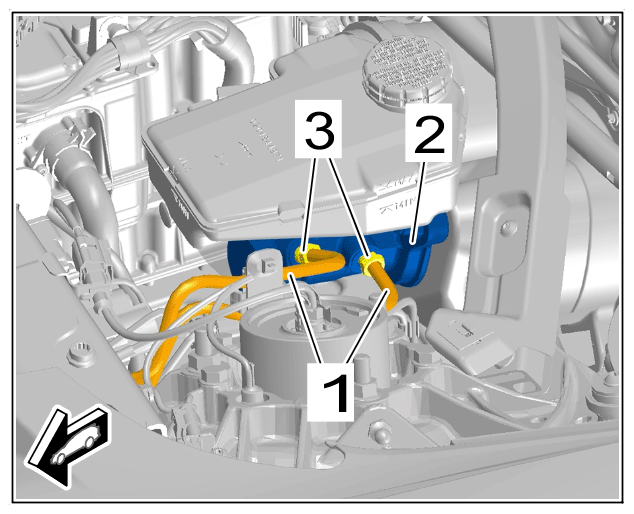

- Connect brake lines -1-
to brake master cylinder -2-
.
- 5.1 Position brake lines -1- on the brake master cylinder -2- .
- 5.2
Screw in and tighten union nuts on brake lines -3-
.
> Tightening torque 18 Nm (13 ftlb.)
Brake lines

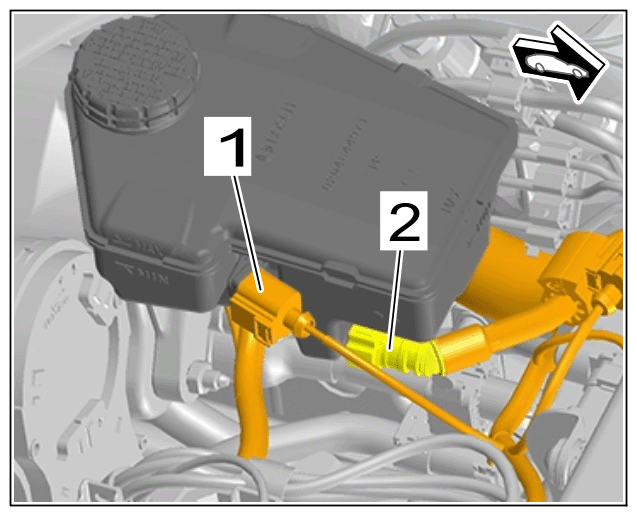

- Push on and lock electric plug connection -1-
and brake pressure line -2-
.
Electric plug connection and brake pressure line
