Removing Rear Brake CALLIPER

Information

• The cores of the warning contact lines must not be exposed! Worn insulation causes malfunctions and must be replaced.
• If the brake discs have a burr on the outside, the brake pads must be reset slightly using a suitable tool.
• A little brake fluid may have to be extracted from the reservoir to prevent it from overflowing when the disc brake pads are pressed back.
• Do not use an impact bolter.

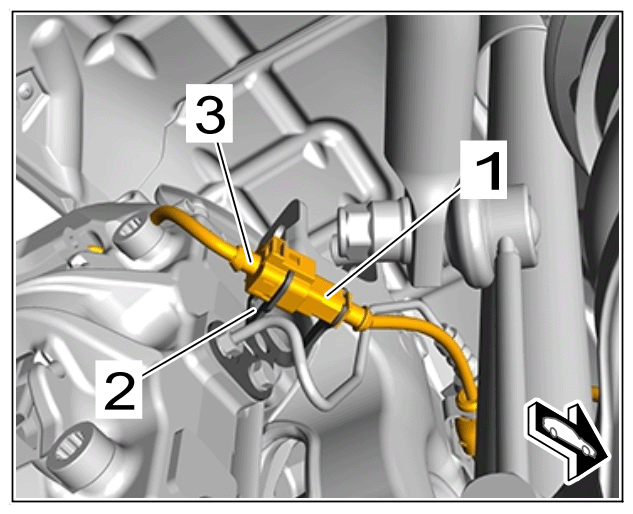

1. Loosen electric line -1-  from holder -2-  .
   1. 1.1  Release and disconnect electric plug connection for brake pad wear indicator -3-  .
   2. 1.2  Unclip electric line for brake pad wear indicator -1-  from holder -2-  and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line for brake pad wear indicator

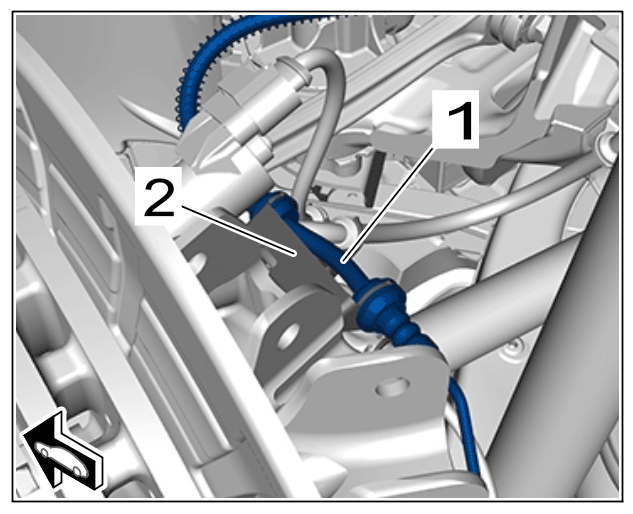

2. Unclip rear brake line -1-  from holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear brake line

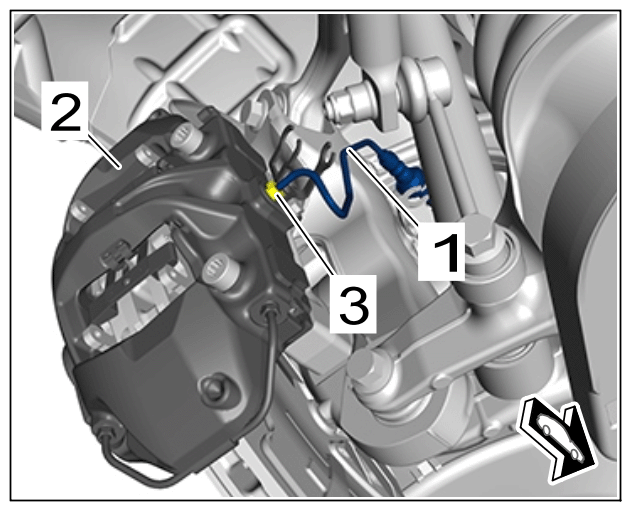

3. Disconnect brake line -1-  from rear brake calliper -2-  .
   1. 3.1  Unscrew union nut on rear brake line -3-  .
   2. 3.2  Pull brake line -1-  out of rear brake calliper -2-  .
   3. 3.3  Catch escaping brake fluid using suitable aids and close off connections using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake line on rear brake calliper

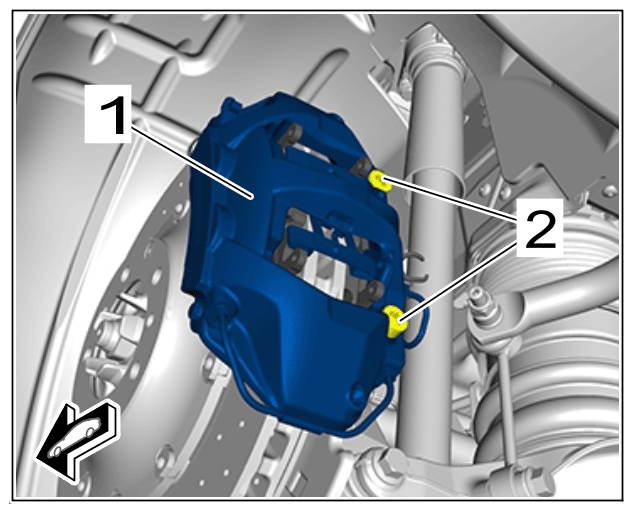

4. For vehicles without PCCB:

   Remove rear brake calliper -1-  .

   1. 4.1  Unscrew screws -2-  .
   2. 4.2  Remove rear brake calliper -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear brake calliper

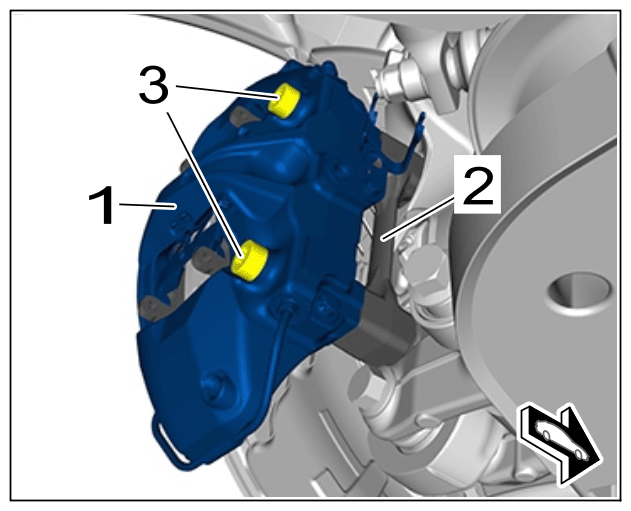

5. For vehicles with PCCB:

   Remove rear brake calliper -1-  with adapter for rear brake calliper -2-  .

   1. 5.1  Unscrew screws -3-  .
   2. 5.2  Remove rear brake calliper -1-  with adapter for rear brake calliper -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear brake calliper (PCCB)
