Installing Rear Brake CALLIPER

Information

• Do not use an impact bolter.
• The thread must be checked visually and may have to be blown out carefully using compressed air. Always wear protective goggles when doing this!
• Replace screws.

  Information

Do not bend the brake lines.

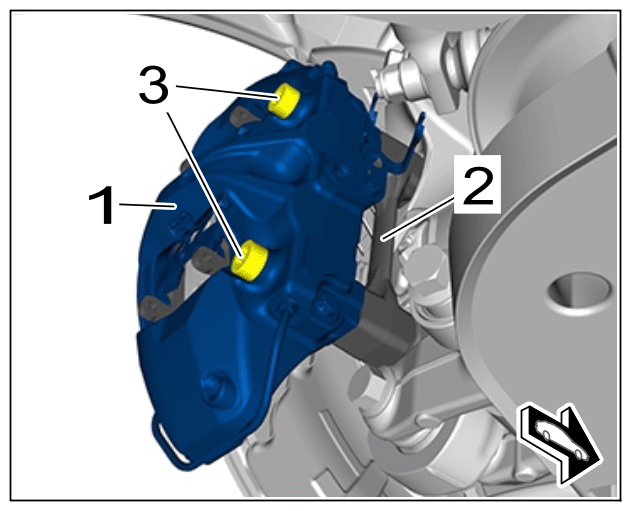

1. For vehicles with PCCB:

   Install rear brake calliper -1-  with adapter for rear brake calliper -2-  .

   1. 1.1  Position rear brake calliper -1-  with adapter for rear brake calliper -2-  .
   2. 1.2  Fit and tighten new screws -3-  .

      > Tightening torque 30 Nm (22 ftlb.)

   > Torque angle 75 °

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear brake calliper (PCCB)

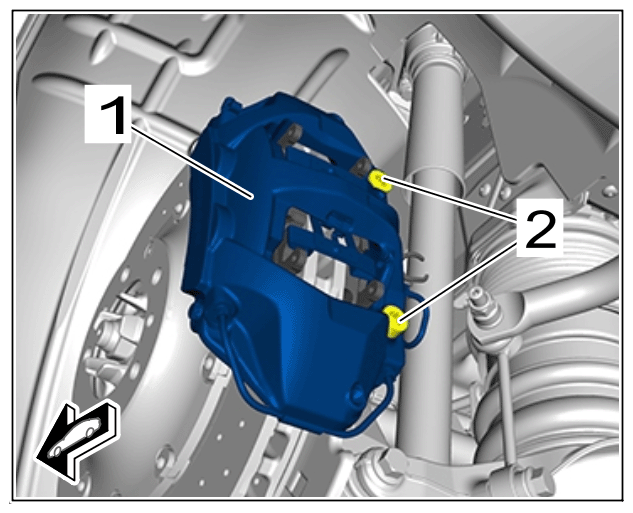

2. For vehicles without PCCB:

   Install rear brake calliper -1-  .

   1. 2.1  Position rear brake callipers -1-  .
   2. 2.2  Fit and tighten new  screws -2-  .

      > Tightening torque 30 Nm (22 ftlb.)

   > Torque angle 75 °

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear brake calliper

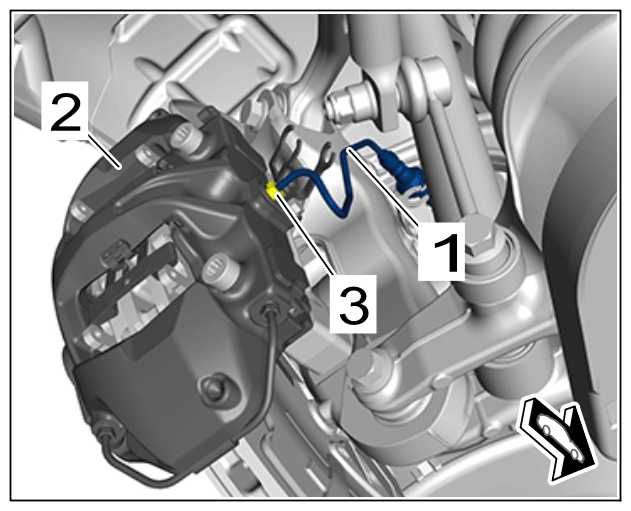

3. Install brake line -1-  on rear brake calliper -2-  .
   1. 3.1  Insert brake line -1-  into rear brake calliper -2-  .
   2. 3.2  Screw in and tighten union nut on rear brake line -3-  .

      > Tightening torque 14 Nm (10.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake line on rear brake calliper

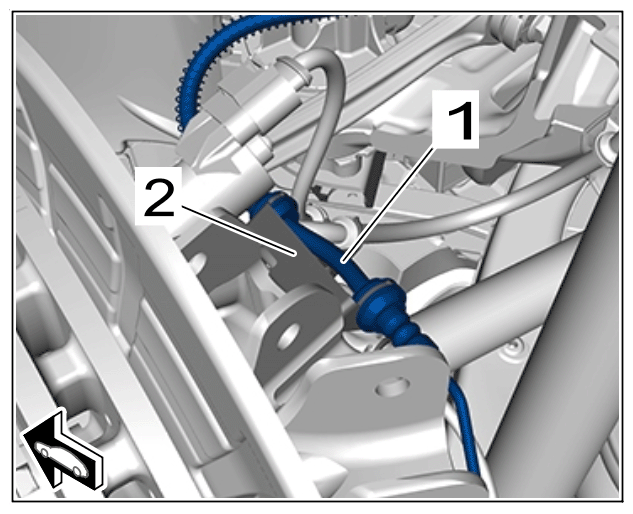

4. Clip rear brake line -1-  into holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear brake line

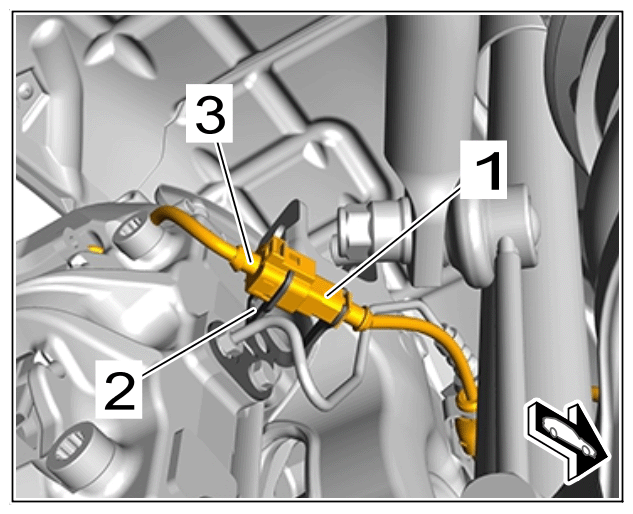

5. Secure electric line for brake pad wear indicator -1-  to holder -2-  .
   1. 5.1  Clip electric line for brake pad wear indicator -1-  into holder -2-  .
   2. 5.2  Connect and lock electric plug connection for brake pad wear indicator -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line for brake pad wear indicator
