Installing Front Brake CALLIPER

WARNING: Danger of injury and damage from brake fluid!

Poisonous if swallowed!
Irritation and damage to skin
Avoid contact with paint surfaces
→ Store brake fluid in suitable, labelled containers only

→ Wear protective gloves and goggles

→ In the event of contact (eyes or skin), wash immediately with water

→ In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

WARNING: Old mounting parts fitted on the brake calliper

Reduced braking effect
Risk of damage to the brake calliper
→ Fit new pad retaining springs

Information

Never use power tools (impact bolter) for loosening and securing the brake calliper on the wheel bearing housing.

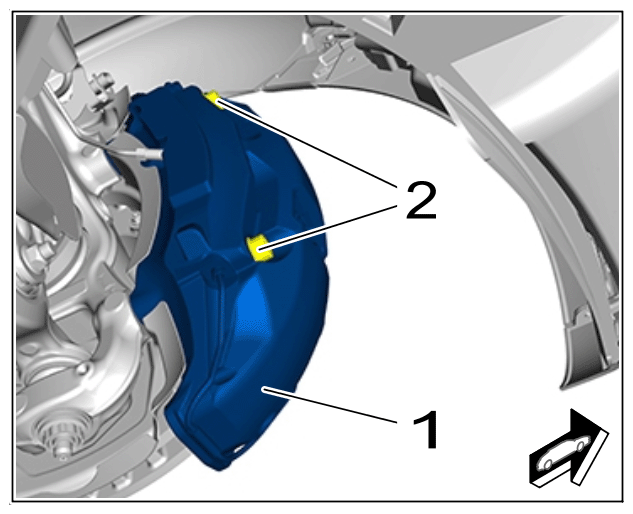

Install front brake calliper -1- .
1. 1.1 Position front brake calliper -1- .
2. 1.2 Screw in and tighten new screws -2- .
  > Tightening torque 30 Nm (22 ftlb.)
> Torque angle 90 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front brake calliper

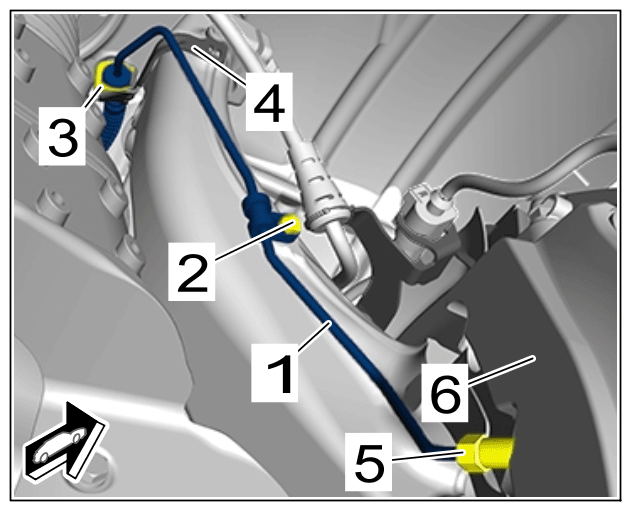

Secure front brake line -1- .
1. 2.1 Position front brake line -1- on front brake calliper -6- .
2. 2.2 Screw in and tighten union nut on front brake line -5- .
  > Tightening torque 14 Nm (10.5 ftlb.)
3. 2.3 Engage front brake line -1- in holder -4- and clip in spring clamp -3- .
4. 2.4 Screw in and tighten screw -2- .
  > Tightening torque 8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front brake line

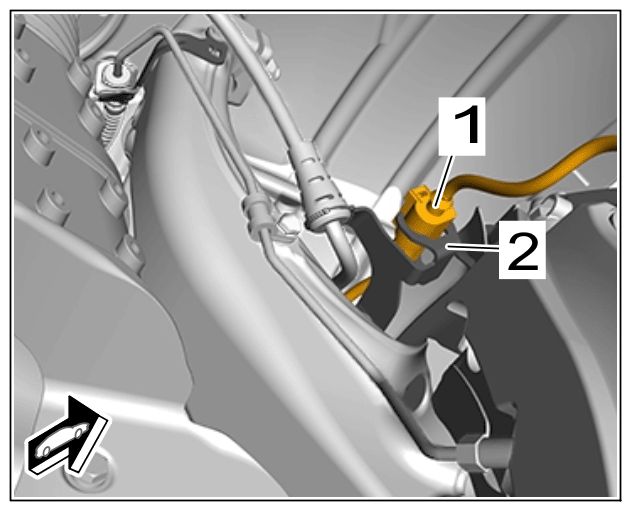

Secure electric plug connection for brake pad wear indicator -1- .
1. 3.1 Clip electric line for brake pad wear indicator -1- into holder -2- .
2. 3.2 Connect and lock electric plug connection for brake pad wear indicator -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line for brake pad wear indicator
