Technical Values

Location	Description	Type	Basic value

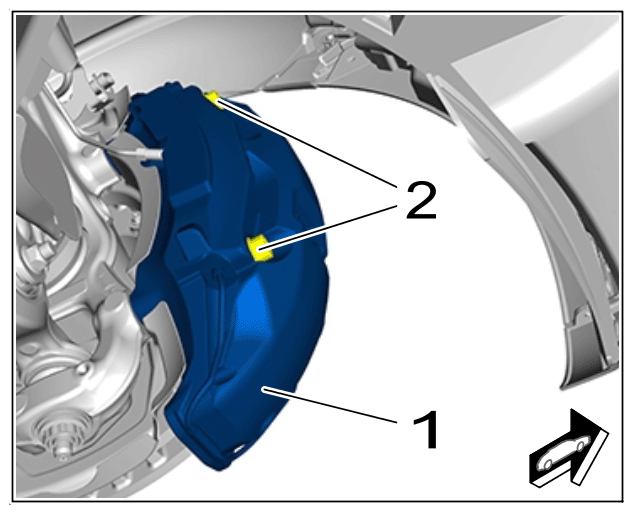

Screws for front brake calliper	Initial tightening, Item 2	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper
Screws for front brake calliper	Final tightening, Item 2	Torque angle	90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper

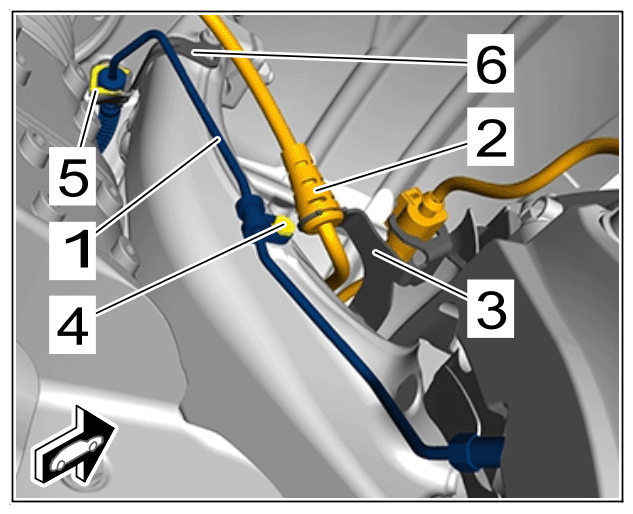

Screw for front brake line holder	Item 4	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake line
