Securing Front Brake Calliper

Get another person to help by holding the brake calliper!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

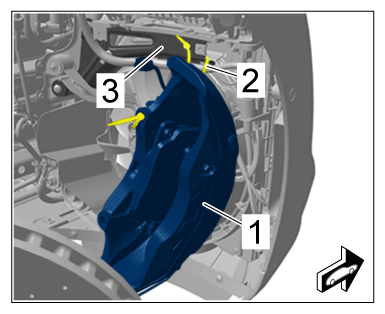

Position of fixing element for brake calliper in wheel housing

1. 1.1  Remove tie-wrap -2-  and then remove front brake calliper.
2. 1.2  Make sure not to damage the brake lines on the brake calliper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

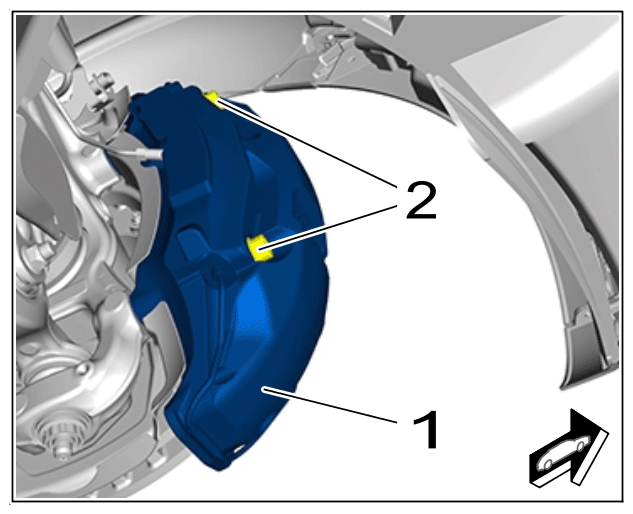

Front brake calliper

1. 2.1  Position brake calliper -1-  .
2. 2.2  Screw in and tighten new screws -2-  .

   > Tightening torque 30 Nm (22 ftlb.)

> Torque angle 90 °

1. 3.1  Engage front brake line -1-  in holder -6-  and clip in spring clamp -5-  .
2. 3.2  Screw in and tighten screw -4-  .

   > Tightening torque 8 Nm (6 ftlb.)

3. 3.3  Clip electric line for ABS -2-  into holder -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

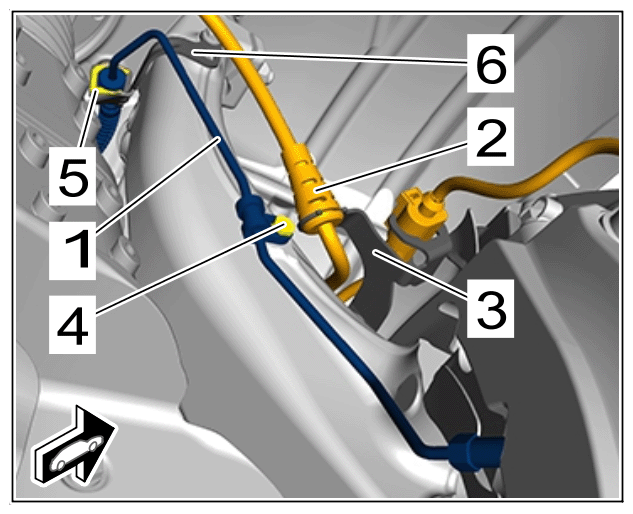

Front brake line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

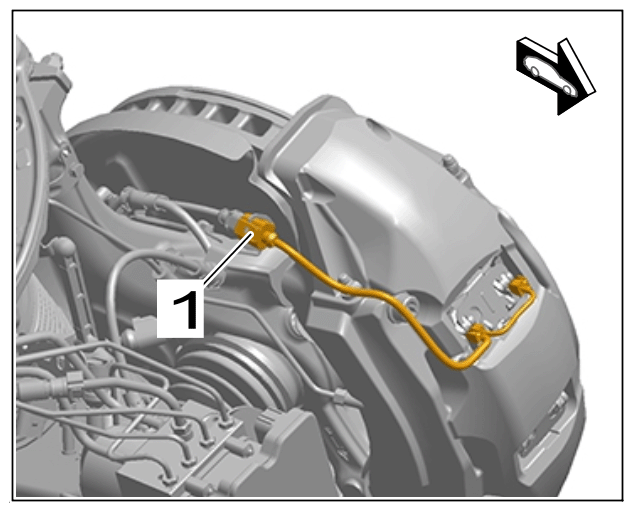

Electric plug connection for brake pad wear indicator
