Loosening Front Brake Calliper

Information

To gain better access for removal of the brake calliper, turn the steering fully either to the right or left.

Information

Never use power tools (impact bolter) for loosening and securing the brake calliper on the wheel bearing housing.

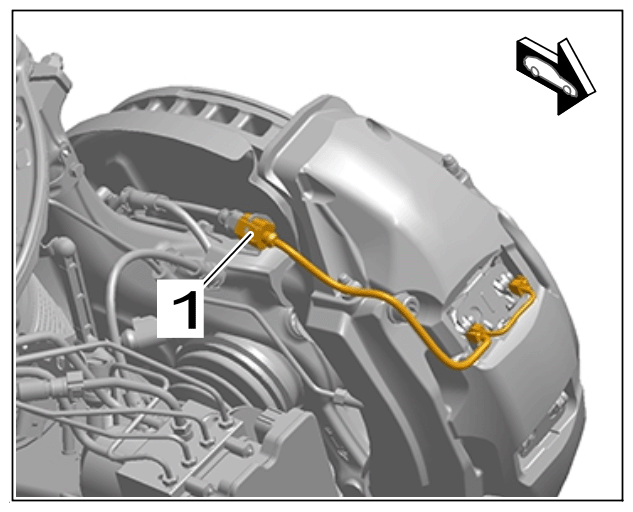

1. Release and disconnect electric plug connection for brake pad wear indicator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for brake pad wear indicator

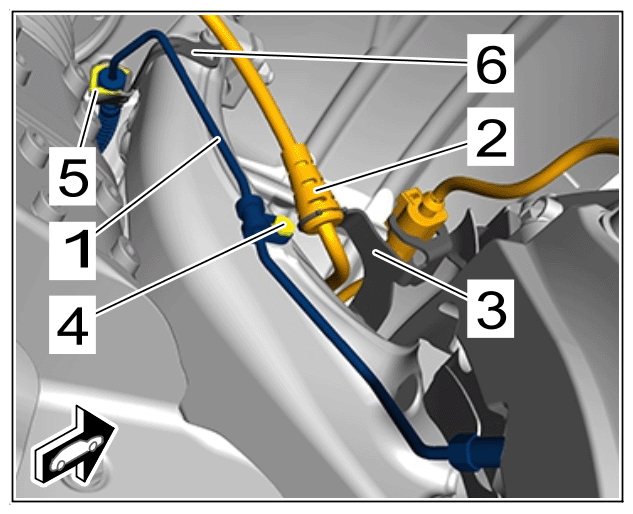

2. Disconnect front brake line -1-  .
   1. 2.1  Unclip electric line for ABS -2-  from holder -3-  .
   2. 2.2  Unscrew screw -4-  .
   3. 2.3  Unclip spring clamp -5-  and disengage front brake line -1-  from holder -6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front brake line

   Information

   If there is a burr on the outside of the brake discs, press the brake pads back using a suitable tool.

   Information

   If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

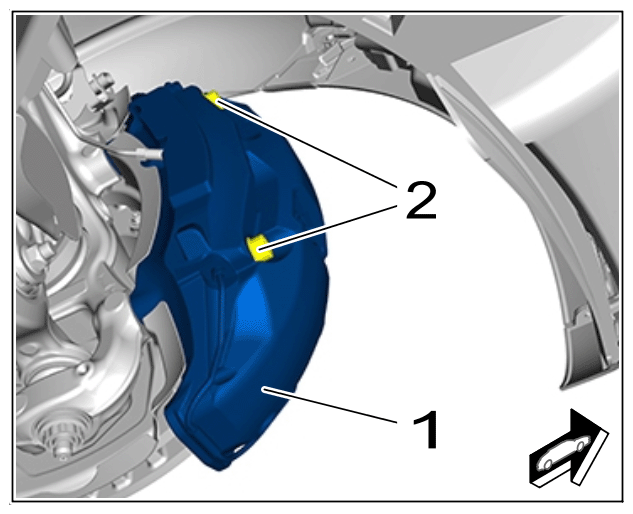

3. Loosen brake calliper -1-  .
   1. 3.1  Unscrew and remove screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front brake calliper

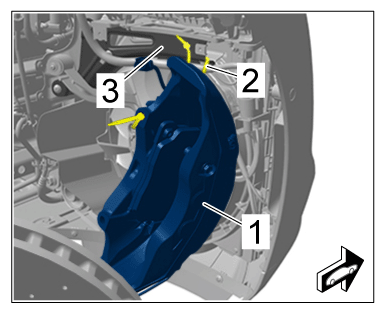

4. Suspend brake calliper -1-  .

   Get another person to help by holding the brake calliper!

   1. 4.1  Remove brake calliper -1-  and use a tie-wrap -2-  to secure it to the transverse strut -3-  .

      Make sure not to damage the brake lines on the brake calliper.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Position of fixing element for brake calliper in wheel housing

   2. 4.2  Place cloths or cardboard between the contact surfaces and brake calliper to prevent damage to the paintwork.
