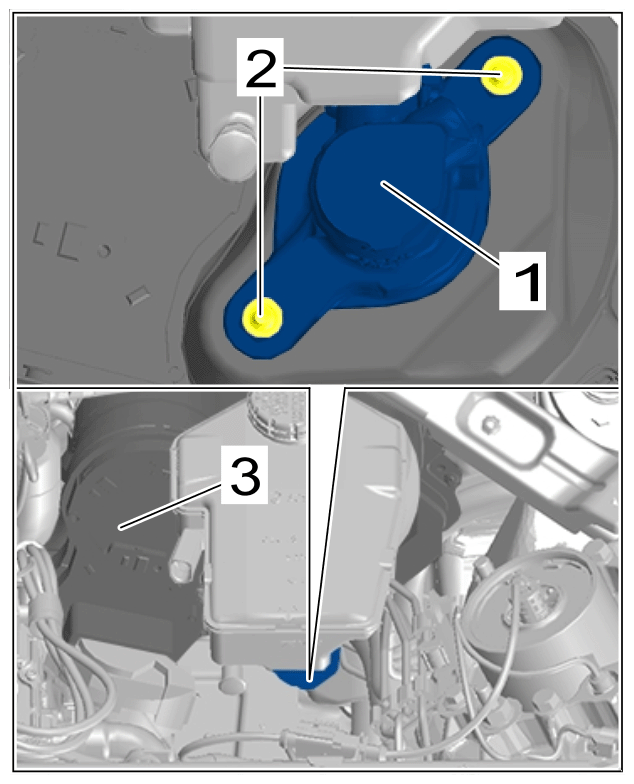

| Nuts securing brake master cylinder to brake booster |
Item 2 |
Tightening torque |
20 Nm (15 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Brake master cylinder |

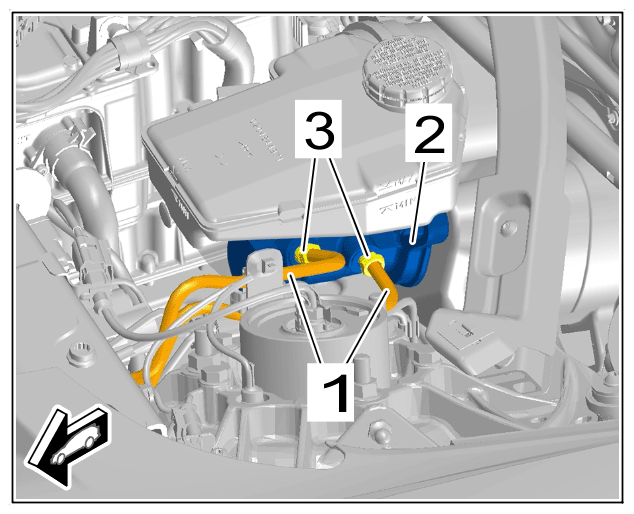

| Brake lines to brake master cylinder |
(Union nuts) Item 1 |
Tightening torque |
18 Nm (13 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Brake lines |
