Installing Brake Master Cylinder
WARNING:
Danger of injury and damage from brake fluid!
- Poisonous if swallowed!
- Irritation and damage to skin
- Avoid contact with paint surfaces
→ Store brake fluid in suitable, labelled containers only
→ Wear protective gloves and goggles
→ In the event of contact (eyes or skin), wash immediately with water
→ In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

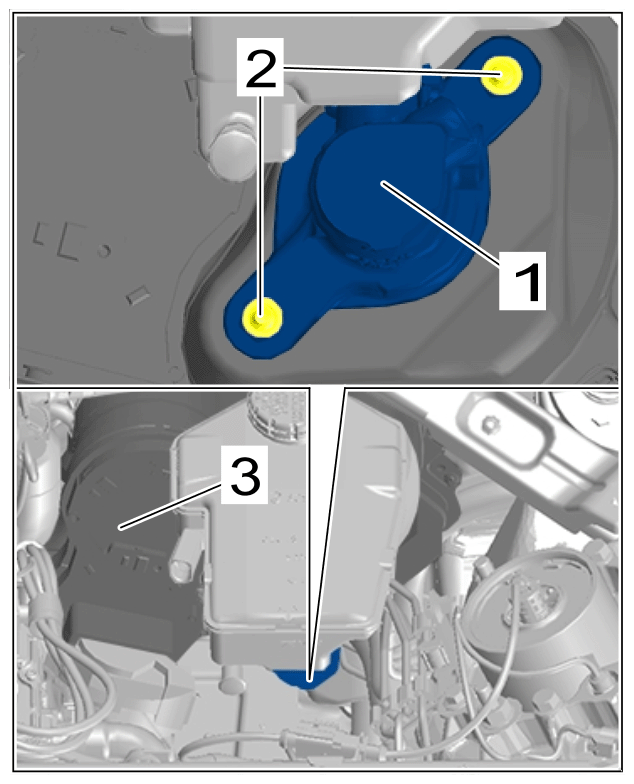

- Install brake master cylinder -1-
.
- 1.1 Fit brake master cylinder -1- with new O-ring in the brake booster -3- .
- 1.2
Screw on nuts -2-
and tighten evenly, making sure not to tilt the brake master cylinder -1-
.
> Tightening torque 20 Nm (15 ftlb.)
Brake master cylinder
Information
Make sure not to get the brake lines mixed up.

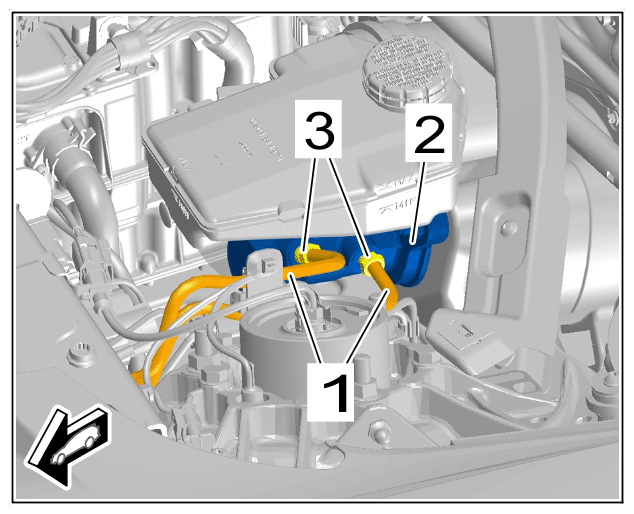

- Connect brake lines -1-
to the brake master cylinder -2-
.
- 2.1 Position brake lines -1- on the brake master cylinder -2- .
- 2.2
Screw in and tighten union nuts on brake lines -3-
.
> Tightening torque 18 Nm (13 ftlb.)
Brake lines

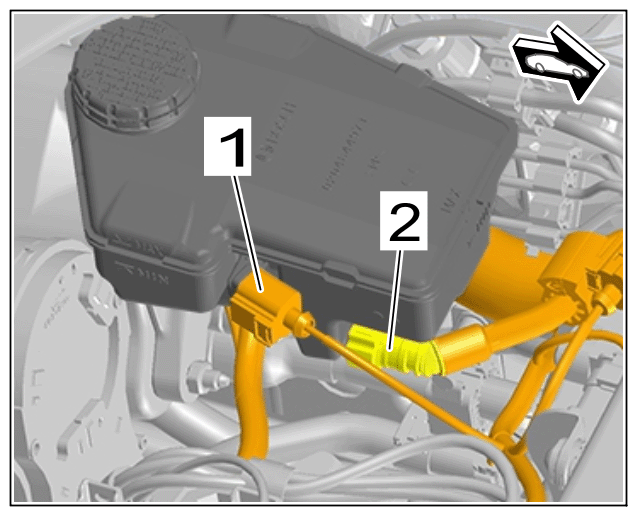

- Push on and lock electric plug connection -1-
and brake pressure line -2-
.
Electric plug connection and brake pressure line
