Home >> Porsche >> 2021 >> Taycan Base >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> 47 Brakes - Brake Hydraulic System, Regulator, Booster 2.0L -- Y1A - TAYCAN (Y1A) >> WM, 471019 Removing And Installing Brake Fluid Reservoir >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing brake fluid reservoir to brake master cylinder Item 2 Tightening torque 7 Nm (5 ftlb.)

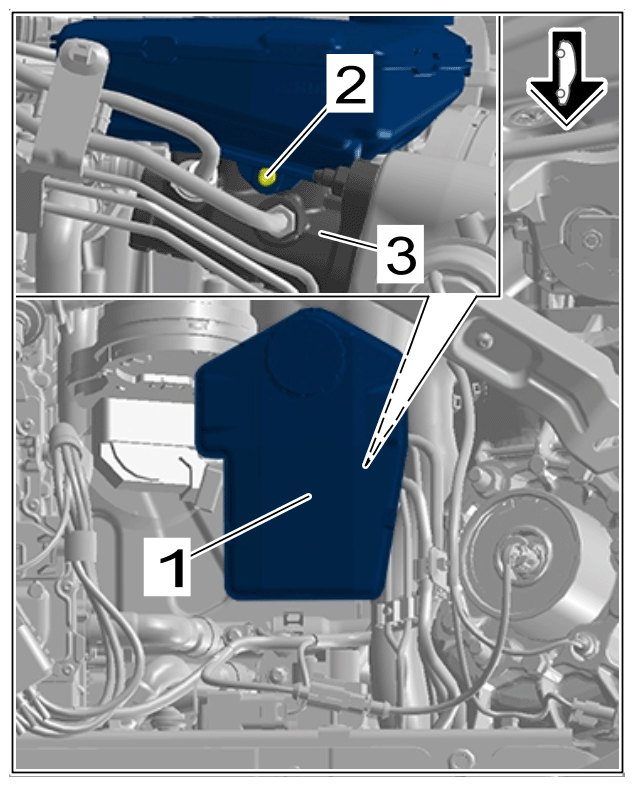

G15553556Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake fluid reservoir
