Installing Brake Fluid Reservoir
WARNING:
Danger of injury and damage from brake fluid!
- Poisonous if swallowed!
- Irritation and damage to skin
- Avoid contact with paint surfaces
→ Store brake fluid in suitable, labelled containers only
→ Wear protective gloves and goggles
→ In the event of contact (eyes or skin), wash immediately with water
→ In the event of contact with paint surfaces, wash off immediately with water - do not wipe off
- Install brake fluid reservoir -1-
.
- 1.1 Fit brake fluid reservoir -1- into the brake master cylinder -3- .
- 1.2
Screw in and tighten screw -2-
.
> Tightening torque 7 Nm (5 ftlb.)
Brake fluid reservoir
- Push on and lock electric plug connection -1-
and brake pressure line -2-
.

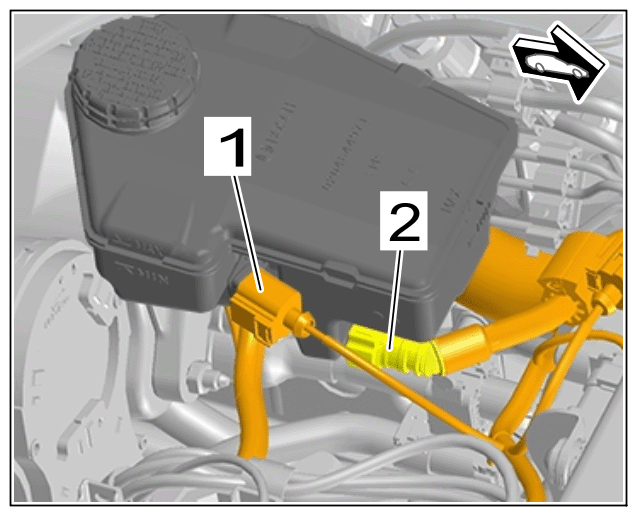

Electric plug connection and brake pressure line
- Fill in brake fluid.
- 3.1 Fill brake fluid into the brake fluid reservoir until the brake fluid level is between MIN and MAX -1- .
- 3.2 Remove any emerging brake fluid immediately, clean affected components with water and dry them.

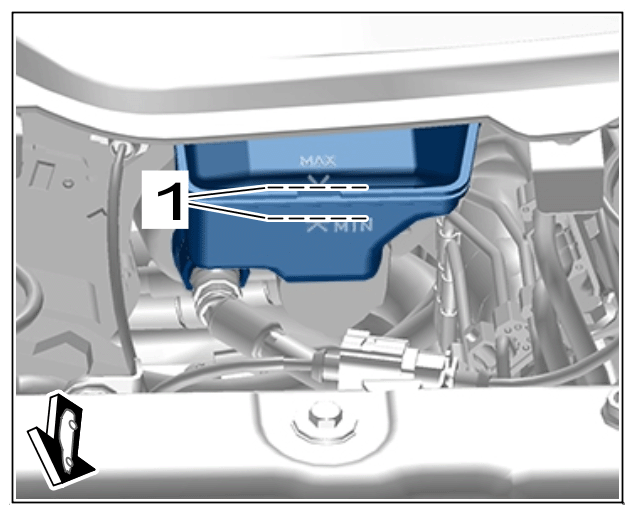

Min/Max markings for brake fluid
