Technical Values

Location	Description	Type	Basic value
Brake disc cover plate	(Screws) Item 2	Tightening torque	8 Nm (6 ftlb.)

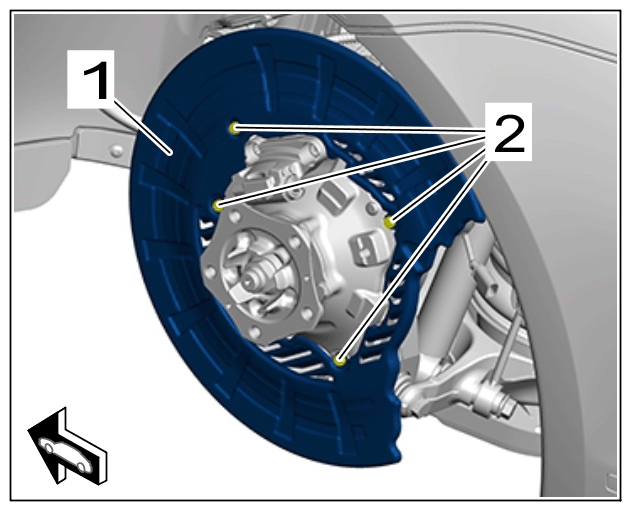

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc cover plate
Spreader device (actuator) to wheel bearing housing	(Screws) Item 3/Always replace screws following removal	Initial tightening	20 Nm (15 ftlb.)

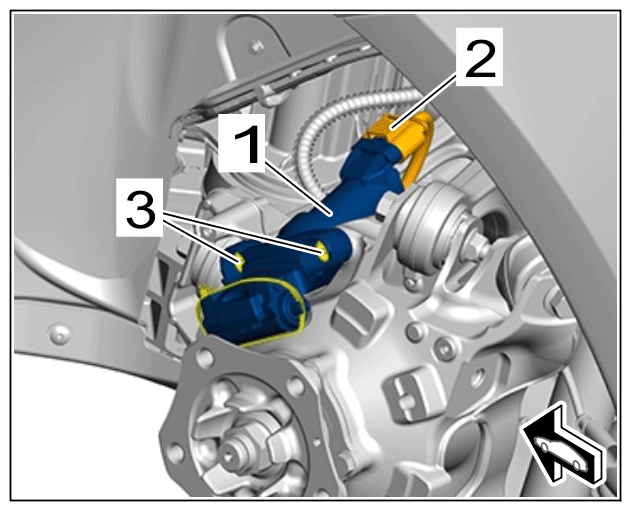

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spreader device
Spreader device (actuator) to wheel bearing housing	(Screws) Item 3/Always replace screws following removal	Final tightening	60 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spreader device
