Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw plug on rear brake disc Item 2 Tightening torque 15 Nm (11 ftlb.)

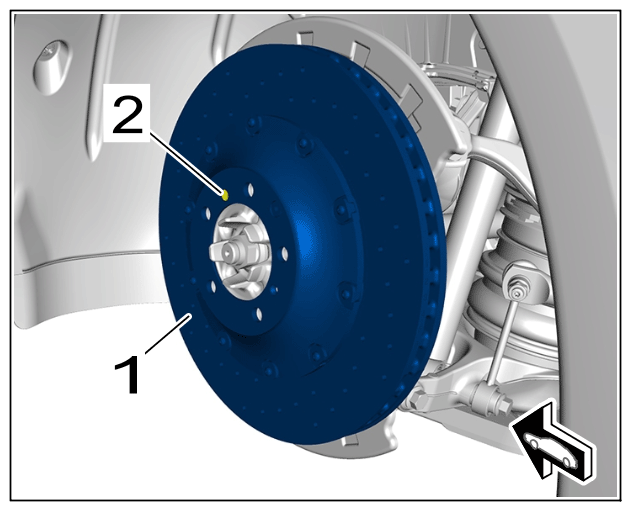

G15553517Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear PCCB brake disc
Adjusting screw 1 click corresponds to adjustment value 0.15 mm
