Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

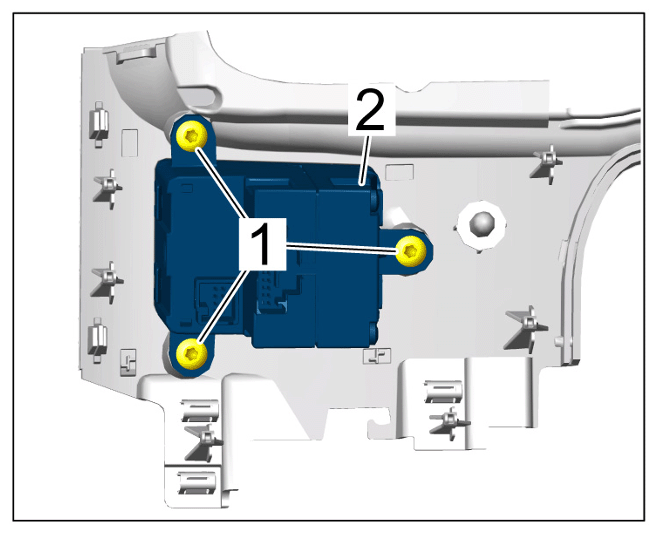

Screws securing parking brake actuator to dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)
G15553513Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
