46 Brakes - Brake Mechanism 2.0L -- Y1A - TAYCAN (Y1A)
>>
WM, 466119 Removing And Installing Parking Brake Actuator
>>
Removing Actuator For Parking Brake
Removing Actuator For Parking Brake

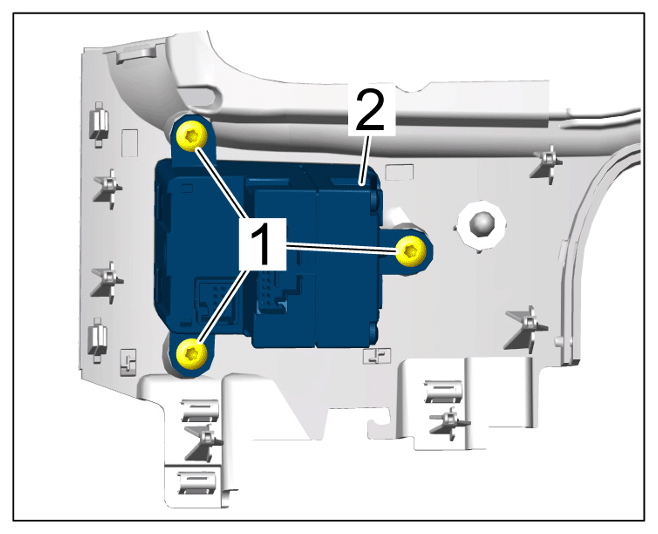

Unscrew screws
-1-
and remove actuator for parking brake
-2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
