Checking Rear Pscb Brake Discs - Layer Thickness

Information

The brake disc temperature must be between 0 °C and 40 °C during the test process.

1. > VAS 6272 - Paint layer thickness measuring device  must be calibrated using > 9938 - calibration piece  .
2. Check thickness.
   1. 2.1  > VAS 6272 - Paint layer thickness measuring device-1-  must be positioned on the brake disc -2-  in such a way that the measuring head is flat on the surface.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

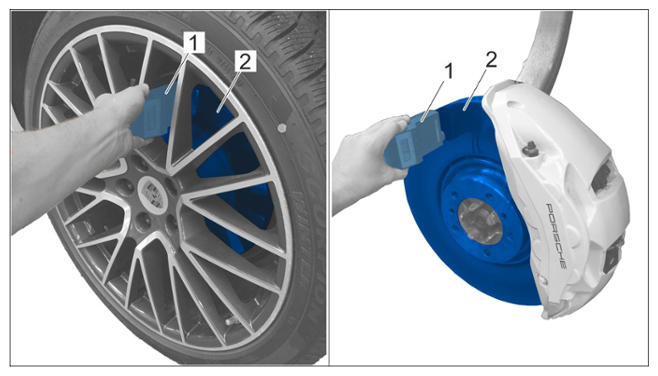

      Checking layer thickness with/without wheel

      Information

      The measurement points 1 to 5 must be centered radially on the friction surface of the brake disc.

      The measurement points 6 and 7 must be offset by 10 mm outwards and inwards.

   2. 2.2  Measure layer thickness at the measurement points -1 to 7-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

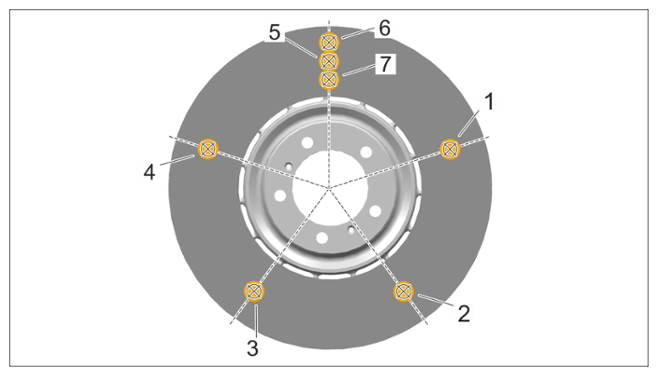

      Measurement points on PSCB brake disc

   3. 2.3  If the measured value at one or more measurement points is less than the required value engraved on the brake disc hub:

      Replace brake disc  .

      > 465319 REMOVING AND INSTALLING REAR BRAKE DISC
