Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Brake disc to wheel bearing (Screw) Item 2/(micro-self-locking)/Always replace screw following removal Tightening torque 5 Nm (3.5 ftlb.)
G15553492Courtesy of PORSCHE CARS NORTH AMERICA, INC.

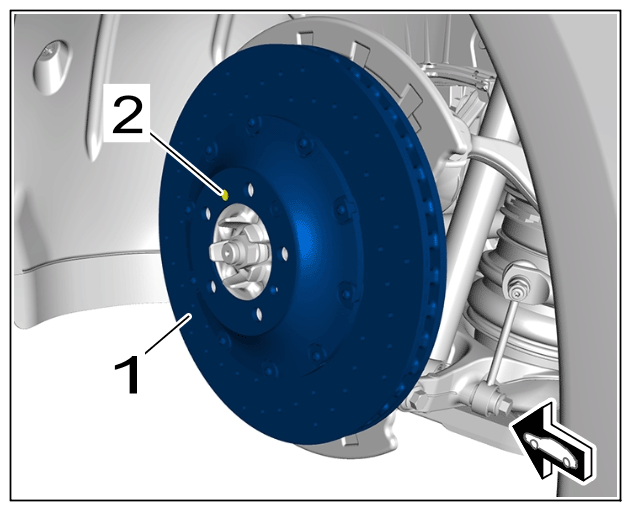

Rear PCCB brake disc
