Removing Rear Brake Disc

  1. Remove rear brake disc -1-  .

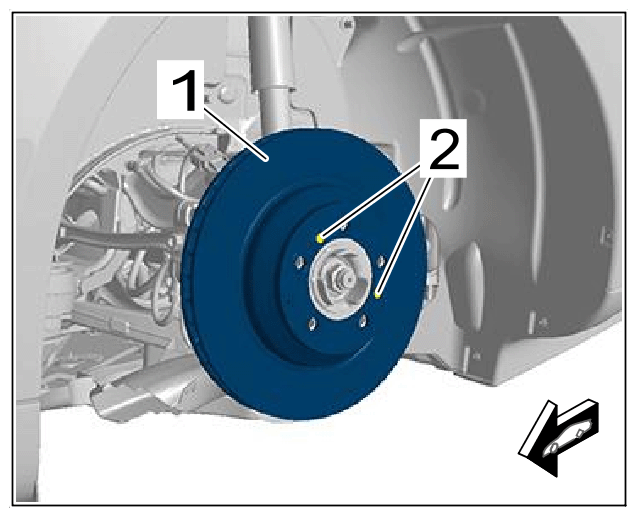

    G15553476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear brake disc

    1. 1.1  Unscrew screws -2-  .
    2. 1.2  Remove rear brake disc -1-  .
    3. 1.3  Replace screws -2-  .
