Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Lateral runout of wheel hub (max.) | Measured value | 0.03 mm | |||
| Lateral runout of brake disc when installed (max.) | Measured value | 0.06 mm | |||
| Adapter plate to wheel hub | Tightening torque | 160 Nm (118 ftlb.) | |||
|

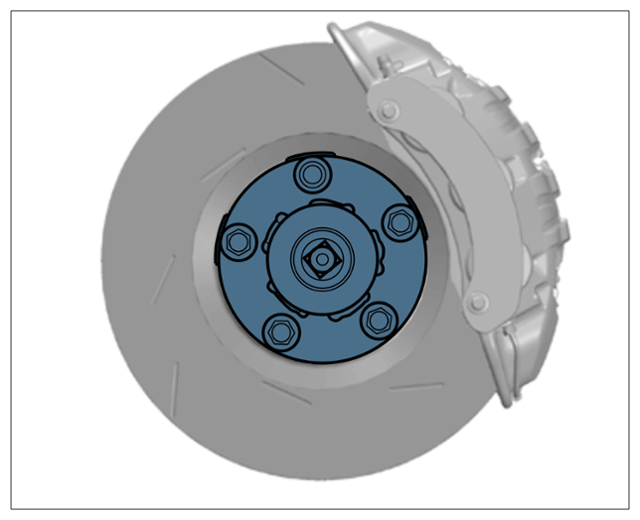

Adapter plate on wheel hub |
|||||
| Brake discs | Maximum crack length | 0.5 x a mm | |||
| Brake discs | Maximum crack width | 1 mm | |||
| Brake discs | Maximum crack depth | 1.5 mm | |||
