Removing Front PCCB Brake Disc

Information

The two-piece brake disc must not be disassembled.

1. Remove front PCCB brake disc -1-  .
   1. 1.1  Unscrew screw -2-  .
   2. 1.2  Remove front PCCB brake disc -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

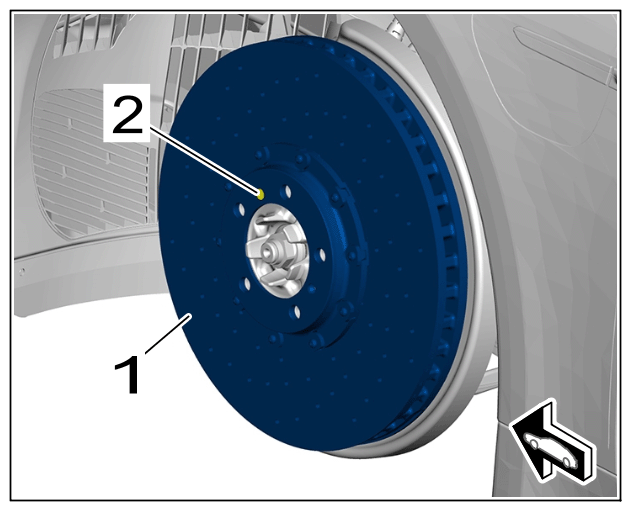

   Front PCCB brake disc
