Installing Front PCCB Brake Disc

Information

The left and right brake disc must not be interchanged during assembly.

1. Only when re-using brake discs:

   Check front PCCB brake discs.

   > 465102 CHECKING FRONT PCCB BRAKE DISCS

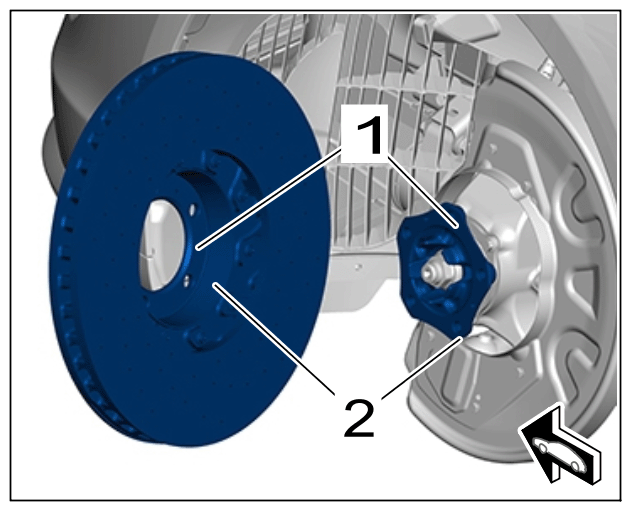

2. Clean the levelling and centering surfaces -1 and 2-  on the front PCCB brake disc and wheel hub.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Levelling and centering surfaces

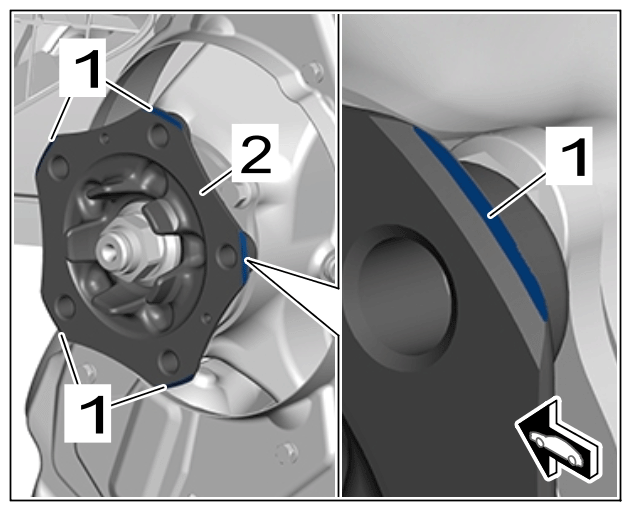

3. Apply a very thin coat of Molub Alloy Paste TA to the centering surfaces -1-  on the wheel hub -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centering surfaces on wheel hub

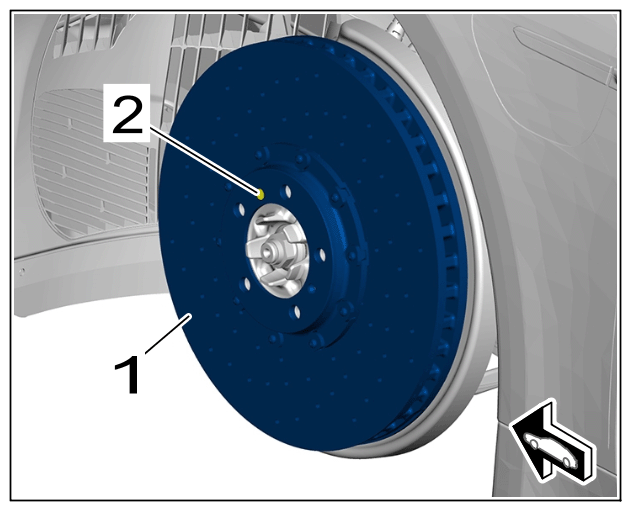

4. Install front PCCB brake disc -1-  .
   1. 4.1  Position front PCCB brake disc -1-  on the levelling and centering surfaces of the wheel hub.
   2. 4.2  Fit and tighten screw -2-  .

   > Tightening torque 5 Nm (3.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front PCCB brake disc
