Removing Front Brake Disc

  1. Remove front brake disc -1-  .
    1. 1.1  Unscrew screws -2-  .
    2. 1.2  Remove front brake disc -1-  .

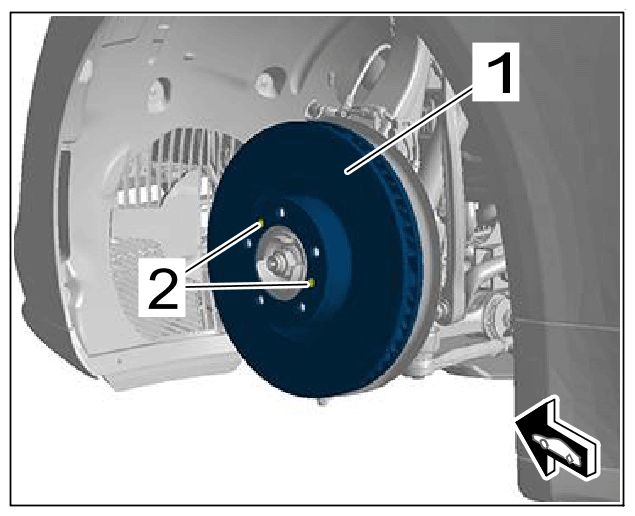

    G15553425Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front brake disc
