Installing Front Brake Disc

Information

The left and right brake disc must not be interchanged during assembly.

1. Only when re-using brake discs:

   Check front brake discs.

   > 465002 CHECKING FRONT BRAKE DISCS

2. Clean the levelling and centering surfaces -1 and 2-  on the front brake disc and wheel hub.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

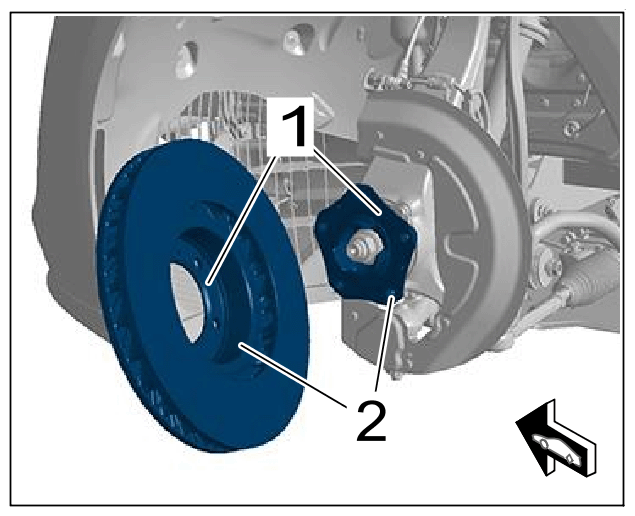

   Levelling and centering surfaces

3. Apply a very thin coat of Molub Alloy Paste TA to the centering surfaces -1-  on the wheel hub -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

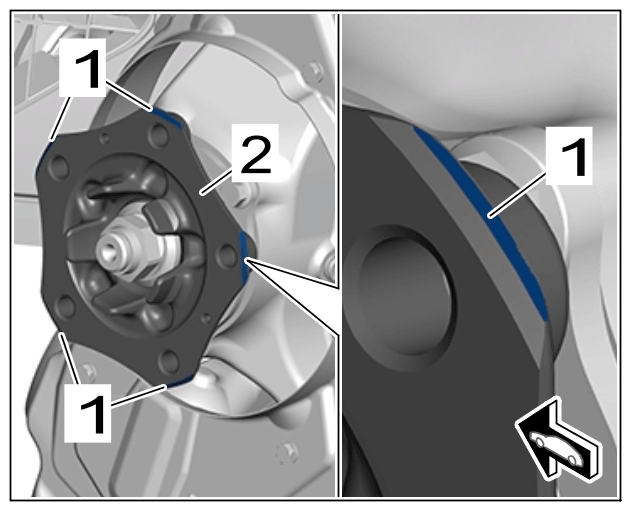

   Centering surface on wheel hub

4. Install front brake disc -1-  .
   1. 4.1  Position front brake disc -1-  on the levelling and centering surfaces of the wheel hub.
   2. 4.2  Fit and tighten screws -2-  .

      > Tightening torque 5 Nm (3.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

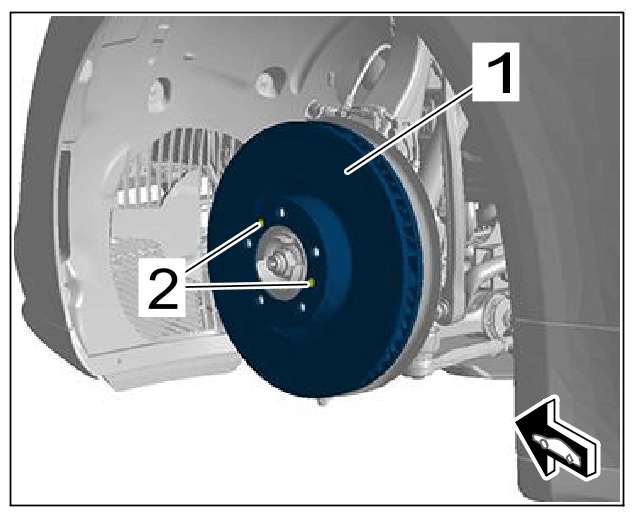

   Front brake disc
