Installing Brake Pads Rear

WARNING: Installation of brake pads with the wrong brake pad quality
  • Longer braking distance
  • More wear on brake pads

    → Only use the type-specific brake pads listed in the Porsche Parts Information.

    → Replace brake pads on both sides of axle when the brake pad wear indicator light comes on.

WARNING: Old mounting parts fitted on the brake calliper
  • Reduced braking effect
  • Risk of damage to the brake calliper

    → Fit new pad retaining springs.

    → Fit new fastening screws.

Information

  1. Install rear disc brake pads.
    G15553408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

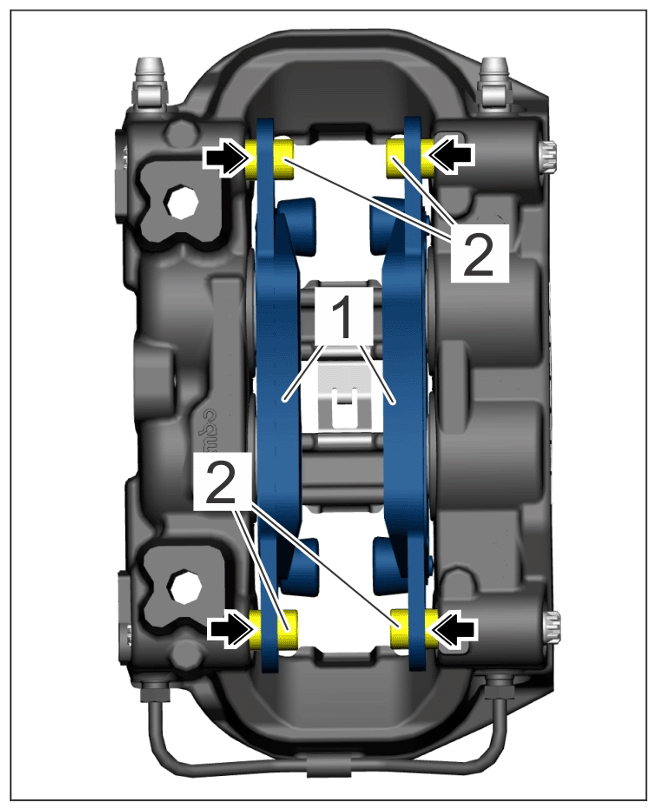

    Rear brake pads

    1. 1.1  Insert the disc brake pads -1-  one after the other into the brake calliper and push them onto the pad retaining bolts -Arrows-  .
    2. 1.2  Check that the disc brake pads are seated correctly in the brake calliper.
  2. Fit new pad retaining clips -1-  for disc brake pads in brake calliper.
    G15553409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

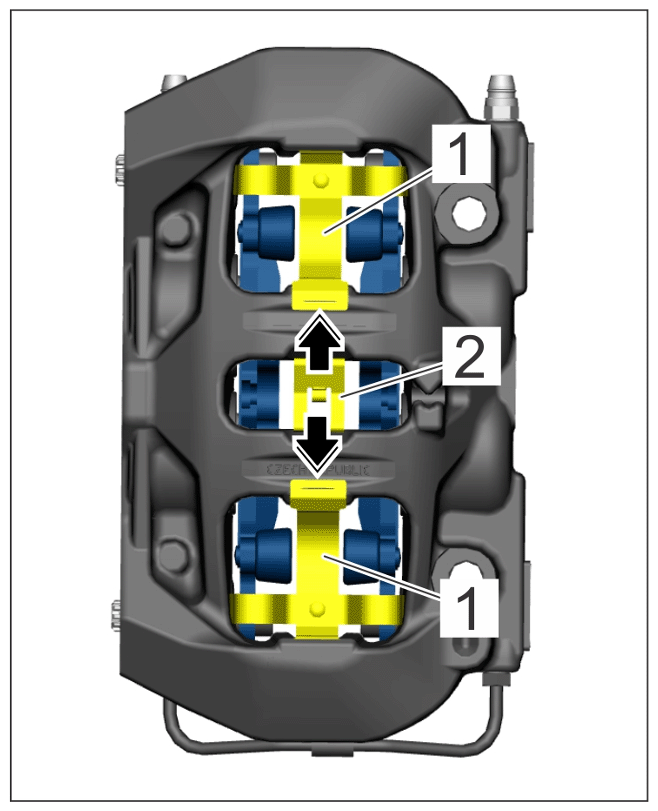

    Retaining clips for brake pads and brake wear cable

    1. 2.1 Installing upper retaining clip:  Press spring tabs together at the sides -Arrows-  and insert the tab -2-  on the brake calliper.

      Then secure the lower tab -3-  on the brake calliper.

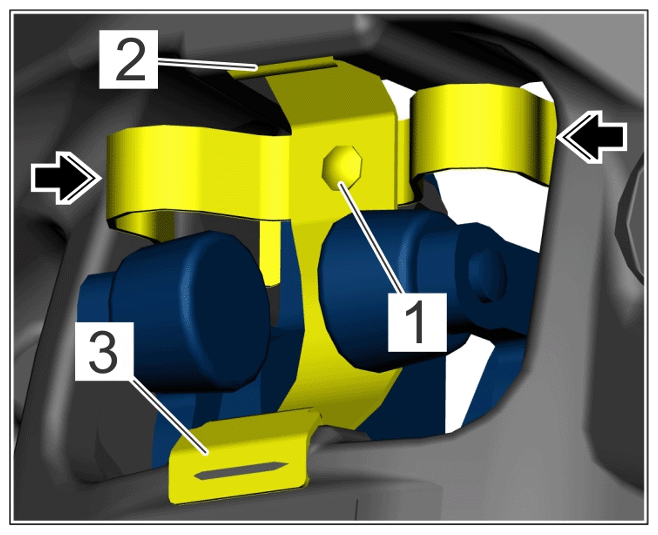

      G15553410Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Retaining clip for disc brake pads (top view)

    2. 2.2 Install lower  retaining clip in reverse position.
