Removing Rear Pccb Brake Pads

Information

If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

Information

Do not damage the dust boots of the brake pistons, replace them if damaged.

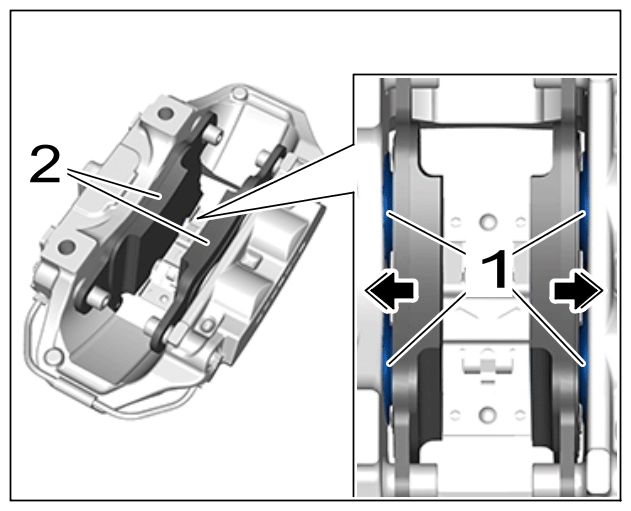

1. Press brake pistons -1-  back.
   1. 1.1  > T10145 - Piston resetting appliance  must be inserted at the center, between the PCCB brake pads -2-  .

      Then, press the brake pistons -1-  back slowly and evenly.

   2. 1.2  > T10145 - Piston resetting appliance  must now be removed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake pistons

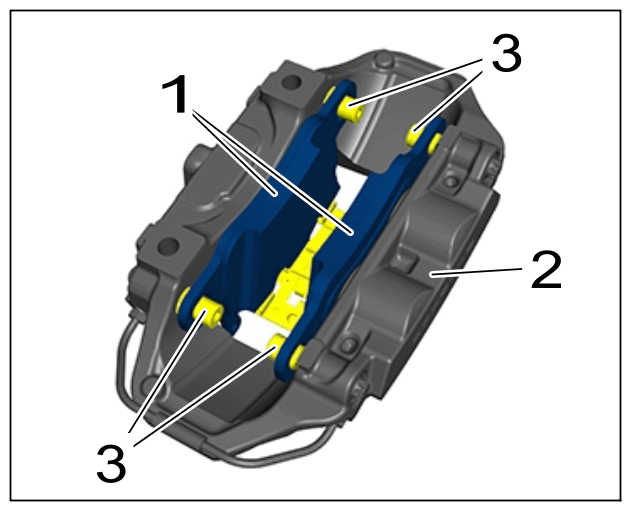

2. Remove rear PCCB brake pads -1-  .
   1. 2.1  Insert a suitable tool between the rear PCCB brake pads -1-  and brake calliper -2-  and carefully detach the rear PCCB brake pads -1-  from the brake calliper -2-  by turning the tool slightly.
   2. 2.2  Remove rear PCCB brake pads -1-  from pad retaining pins -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake pads

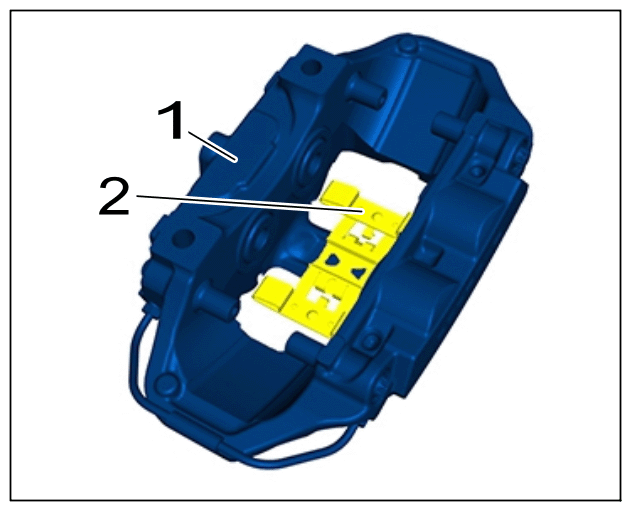

3. Remove pad retaining clip -2-  from the brake calliper -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pad retaining clip

4. Clean contact surfaces of the rear PCCB brake pads in the brake calliper.
