Installing Rear Pccb Brake Pads
WARNING:
Installation of brake pads with the wrong brake pad quality
- Longer braking distance
- More wear on brake pads
→ Only use the type-specific brake pads listed in the Porsche Parts Information.
→ Replace brake pads on both sides of axle when the brake pad wear indicator light comes on.
WARNING:
Old mounting parts fitted on the brake calliper
- Reduced braking effect
- Risk of damage to the brake calliper
→ Fit new pad retaining springs.
→ Fit new fastening screws.
Information
- The backs of the pad backing plates must not be greased .
- Disc brakes must be clean and free of grease .
- A new repair kit must be used when replacing the disc brake pads .

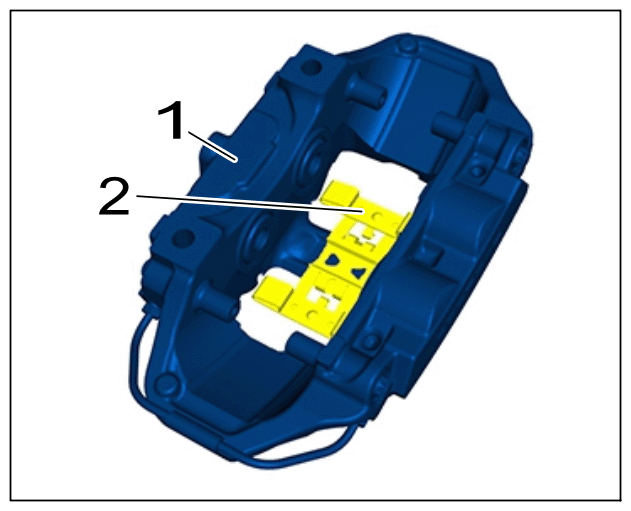

- Install new
pad retaining clip -2-
in the brake calliper -1-
.
Pad retaining clip

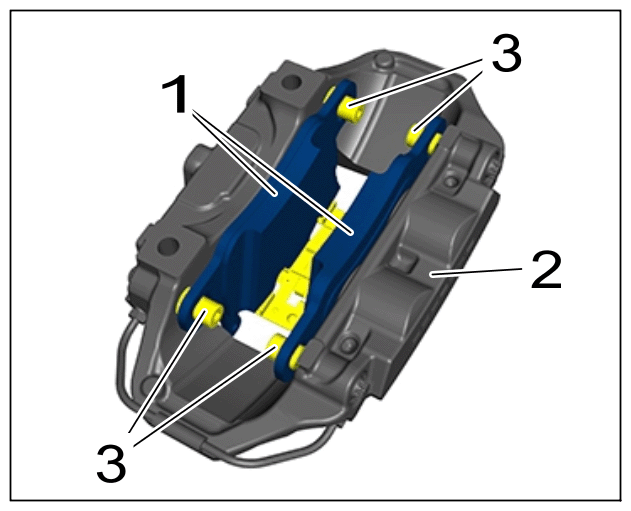

- Install rear PCCB brake pads -1-
.
- 2.1 Insert rear PCCB brake pads -1- into the brake calliper -2- and push them onto the pad retaining pins -3- .
- 2.2 Check that the rear PCCB brake pads -1- are seated correctly in the brake calliper -2- .
Brake pads
