Installing Front Pccb Brake Pads

WARNING: Installation of brake pads with the wrong brake pad quality

Longer braking distance
More wear on brake pads
→ Only use the type-specific brake pads listed in the Porsche Parts Information.

→ Replace brake pads on both sides of axle when the brake pad wear indicator light comes on.

WARNING: Old mounting parts fitted on the brake calliper

Reduced braking effect
Risk of damage to the brake calliper
→ Fit new pad retaining springs.

→ Fit new fastening screws.

Information

The backs of the pad backing plates must not be greased .
Disc brakes must be clean and free of grease .
A new repair kit must be used when replacing the PCCB brake pads .

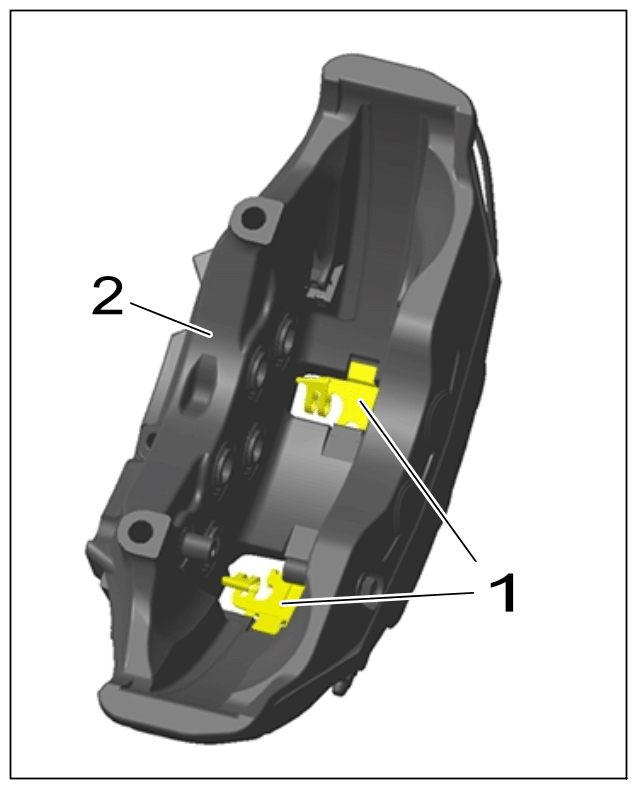

Insert new pad retaining clips -1- in the brake calliper -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pad retaining clips

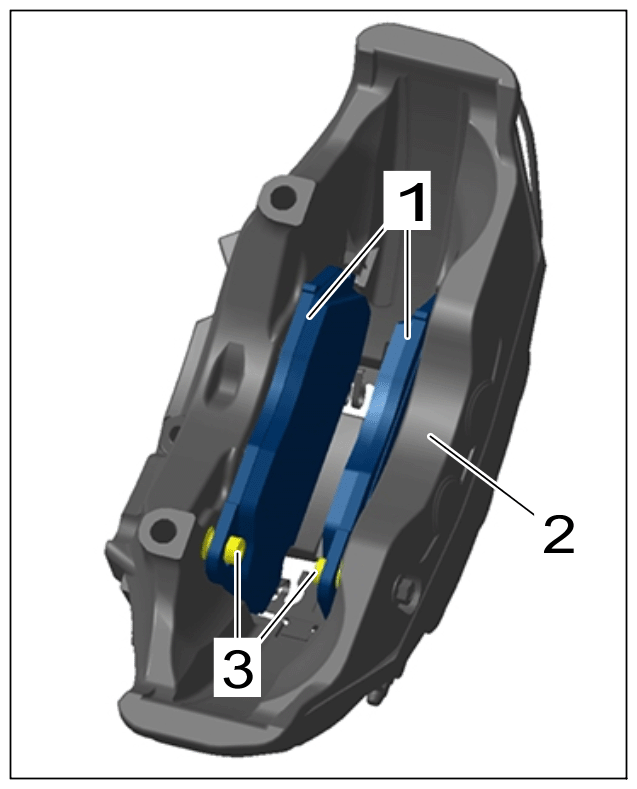

Install front PCCB brake pads -1- .
1. 2.1 Insert front PCCB brake pads -1- into the brake calliper -2- and insert them into the pad retaining pins -3- .
2. 2.2 Check that the front PCCB brake pads -1- are seated correctly in the brake calliper -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front PCCB brake pads
