Checking Thickness Of Front Pccb Brake Pads
WARNING:
Installation of brake pads with the wrong brake pad quality
- Longer braking distance
- More wear on brake pads
→ Only use the type-specific brake pads listed in the Porsche Parts Information.
→ Replace brake pads on both sides of axle when the brake pad wear indicator light comes on.
Information
The pictures shown in this document may differ from the original.
Information

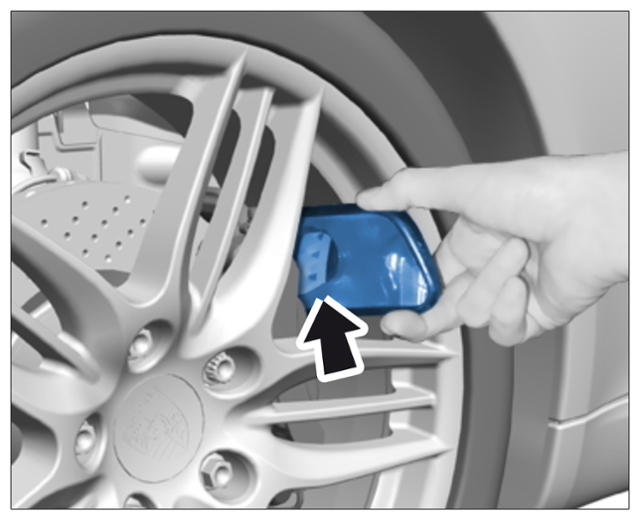

With wheels fitted - using a mirror -arrow- :
Visual inspection of brake pads
- Check outside of brake pads for wear through the cut-outs in the rim .
- Check inside of brake pads for wear from below .
Information
> 473909 LOOSENING AND SECURING FRONT BRAKE CALLIPER
Measuring thickness of brake pads
- If brake pad wear is indicated by a warning light, replace warning contact (sensor with line and electric plug connection) .
- Replace warning contacts if the core of the wire is worn .
- If only the plastic part of the warning contact is worn, there is no need to replace it .
- Check front PCCB brake pads.
- 1.1 Visually inspect inside and outside of PCCB brake pads for wear and replace them if necessary.
