Removing Brake Disc Air Guide

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Remove brake disc air guide -1-  .
   1. 1.1  Unscrew screw -2-  .
   2. 1.2  Pull brake disc air guide -1-  off nut -3-  .
   3. 1.3  Remove brake disc air guide -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

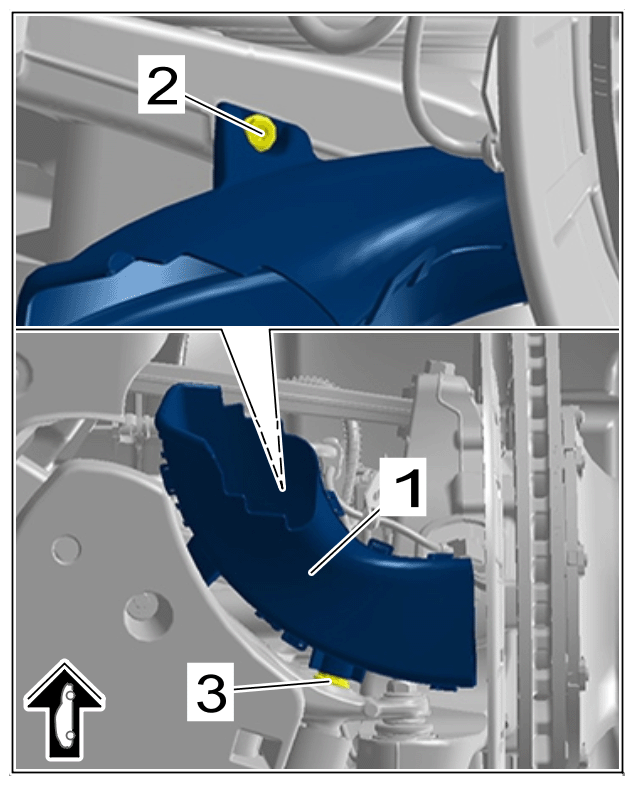

   Brake-disc air guide
