Installing Brake Disc Air Guide

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

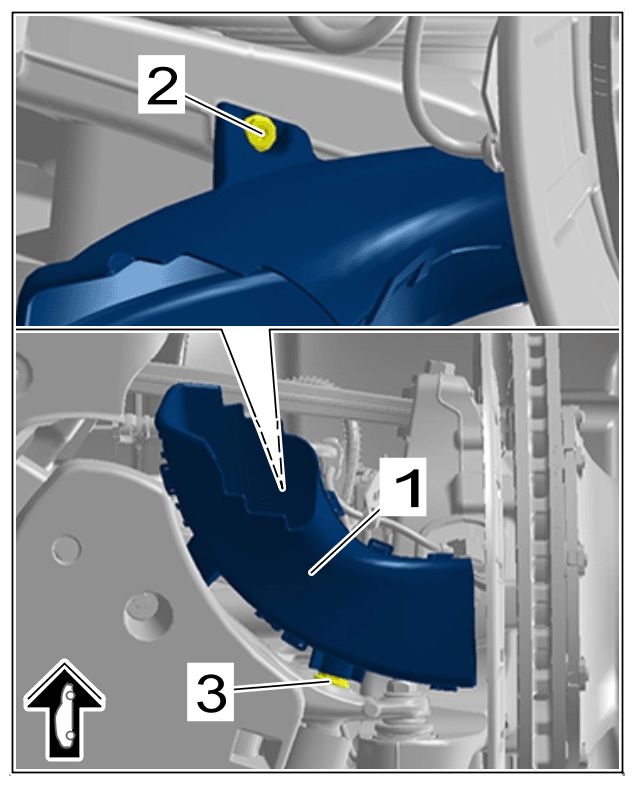

1. Install brake disc air guide -1-  .
   1. 1.1  Push brake disc air guide -1-  onto nut -3-  .
   2. 1.2  Screw in and tighten screw -2-  .

      > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake-disc air guide
