Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake-disc air guide to front-axle carrier | Screw/Item 2 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|

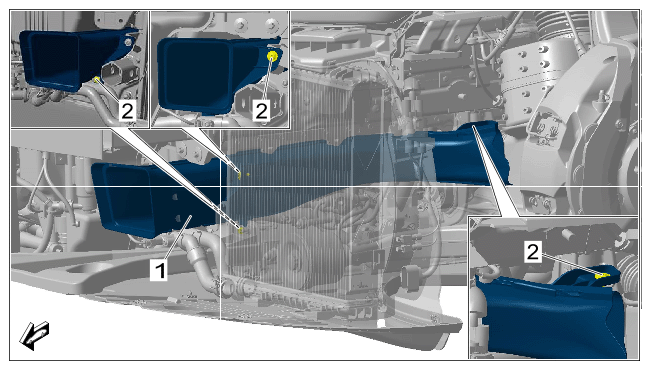

Air guide behind front apron |
|||||
| Brake-disc air guide to front spring strut | Screw/Item 3 | Tightening torque | 11 Nm (8 ftlb.) | ||
|

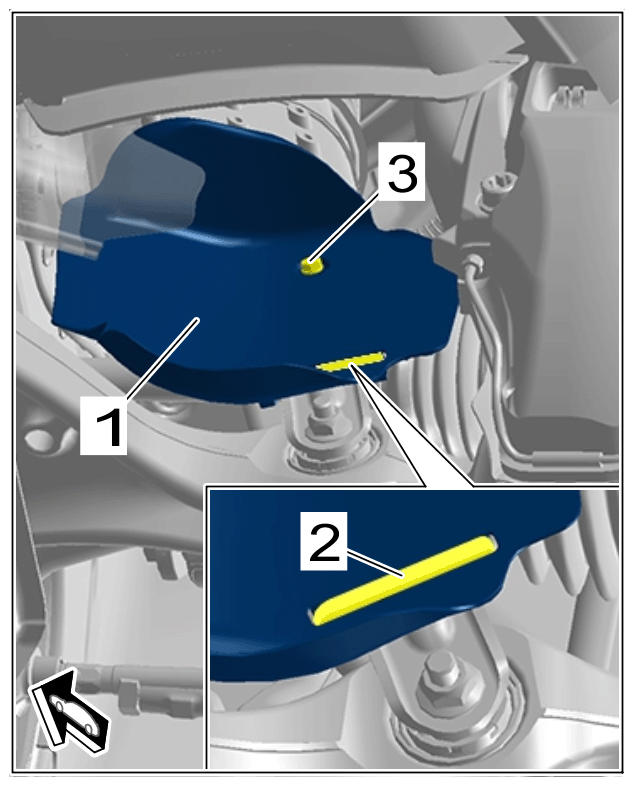

Brake-disc air guide on front spring strut |
|||||
