Removing Mounting Saddle

1. 1.1  Unscrew nuts -2-  .
2. 1.2  Move holder with control unit -1-  aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

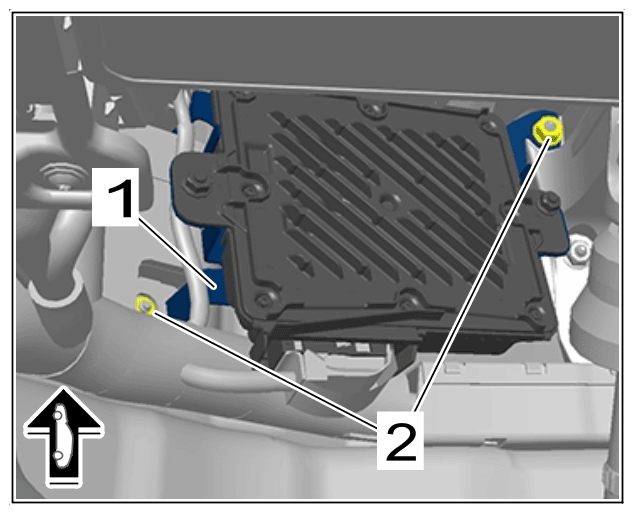

OTA control unit holder

1. 2.1  Unscrew screws -2-  .

   The screws are accessible from the luggage compartment side.

2. 2.2  Remove mounting saddle -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

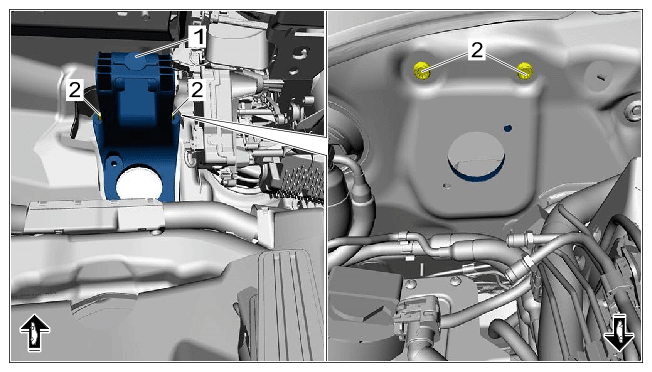

Mounting saddle with screws (luggage compartment side)
