Installing Mounting Saddle

Information

You will need a second mechanic to help you with this step.

1. Install mounting saddle -1-  .
   1. 1.1  Fit mounting saddle -1-  .
   2. 1.2  Fit and tighten screws -2-  from the luggage compartment side.

      > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

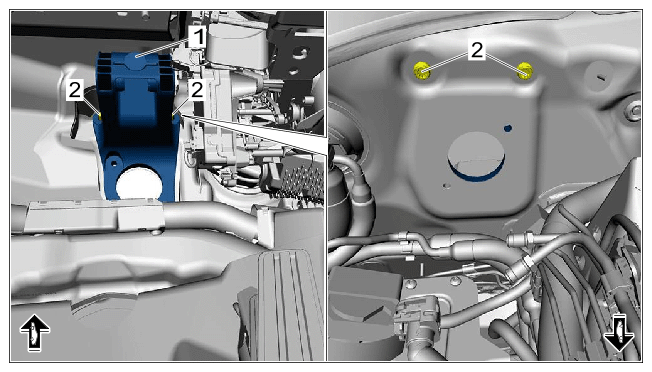

   Mounting saddle with screws (luggage compartment side)

2. Secure control unit holder -1-  to the mounting saddle and body.
   1. 2.1  Fit control unit holder -1-  .
   2. 2.2  Fit and tighten nuts -2-  .

      > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

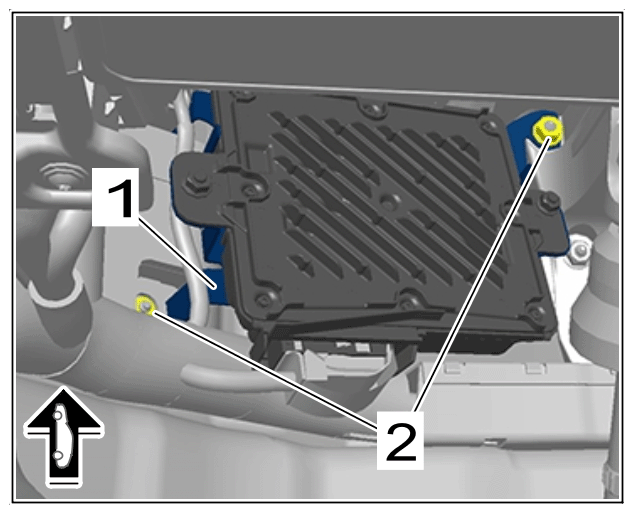

   Control unit holder
