Removing Armrest With Cover

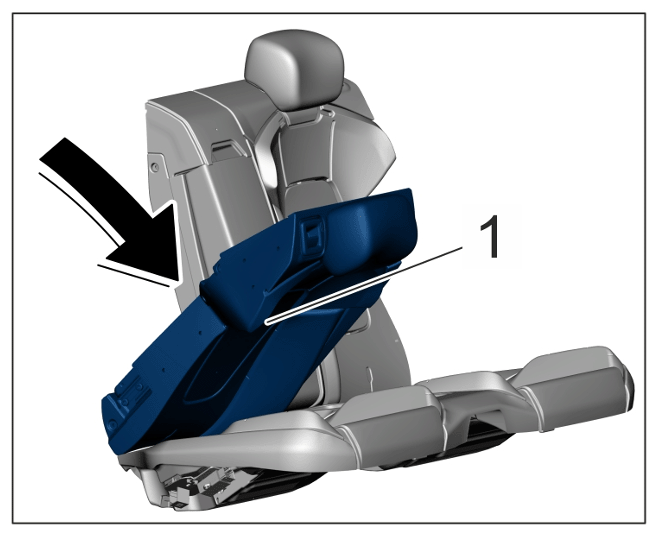

Fold rear backrest -1- over -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folding rear backrest over

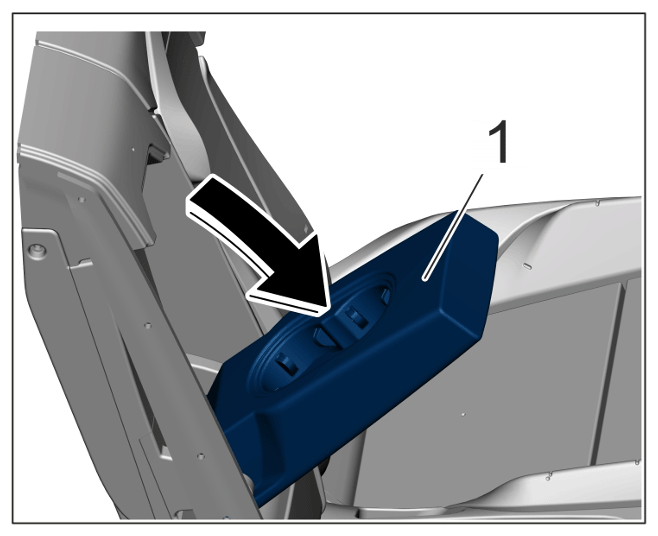

Open the armrest -1- (-Arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Opening armrest

Information

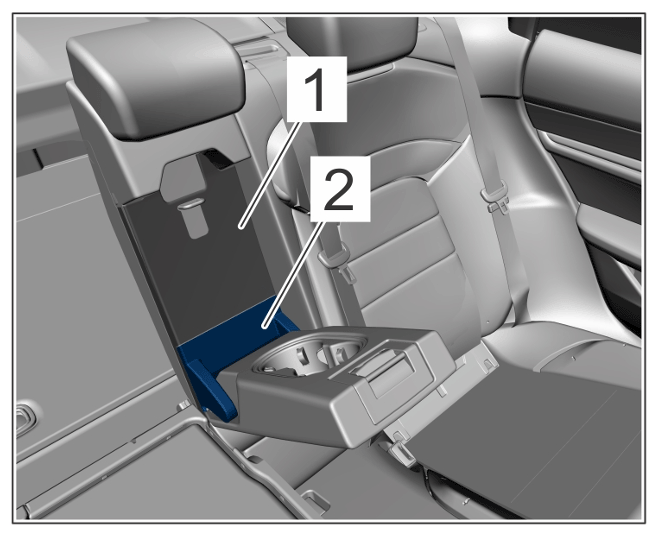

The covers -1 and 2- cannot be removed without destructive damage.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Covers

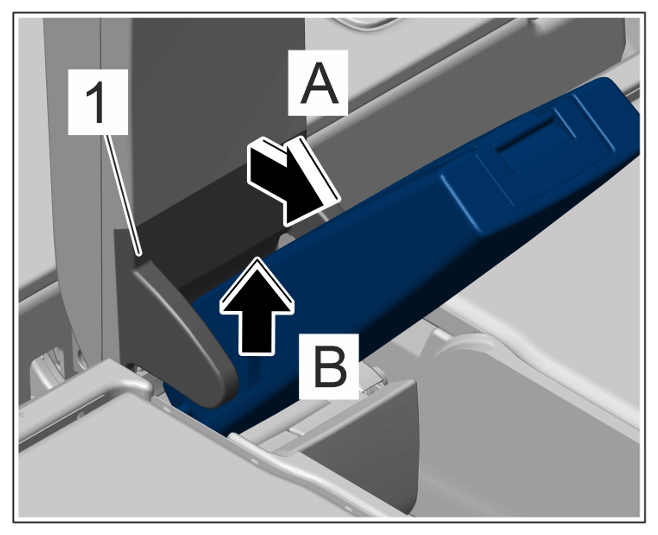

Release cover -1- (-arrow A- ) and remove it -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

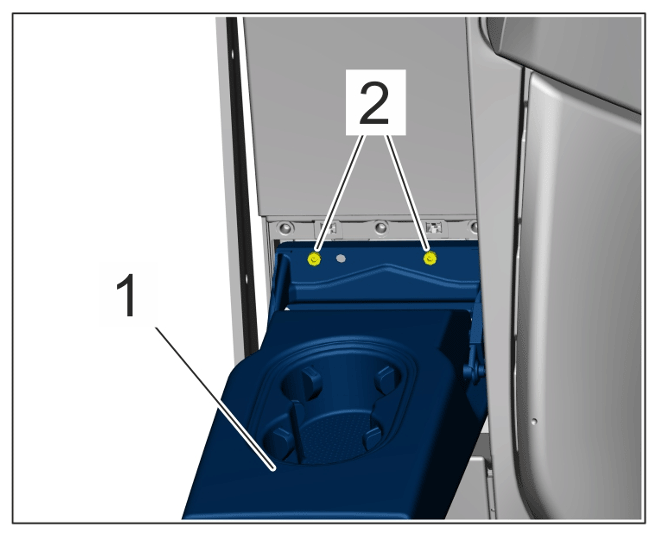

Unscrew screws -2- and remove armrest with holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest holder
