Removing Suction Fan For Backrest Surface

  1. Remove suction fan for backrest surface -3-  .

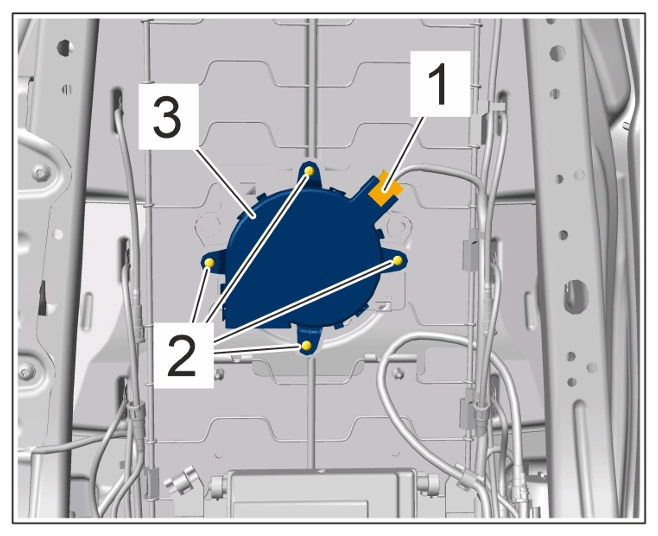

    G15565188Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction fan for backrest surface

    1. 1.1 Release and unplug electric plug connection -1-  .
    2. 1.2 Disengage rubber pins -2-  .
    3. 1.3 Remove suction fan for backrest surface -3-  .
