Removing Cover For Front Seat

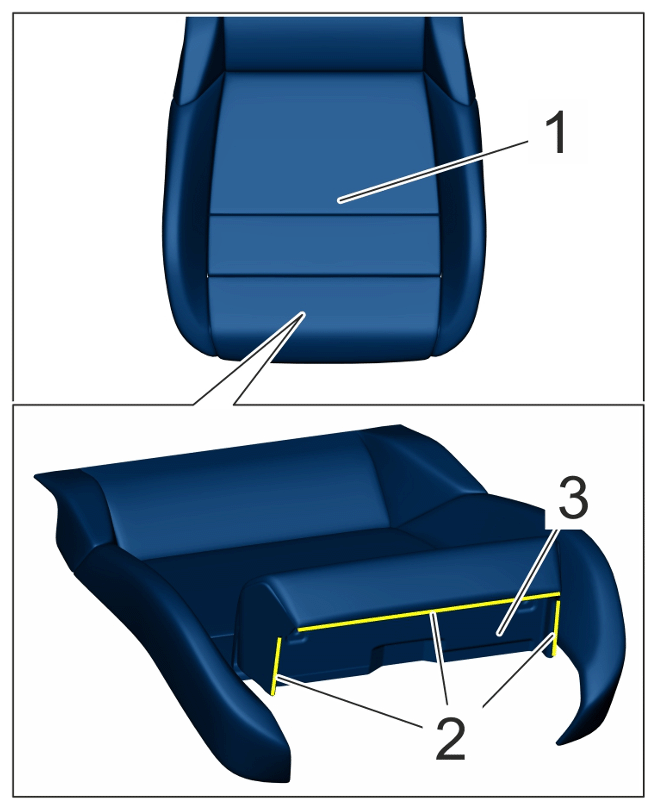

  1. Disconnect front seat cover -1-  from the cushion -2-  at the marked positions -3-  . Remove cushion -3-  .
    G15565185Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat cover (top knuckle support)

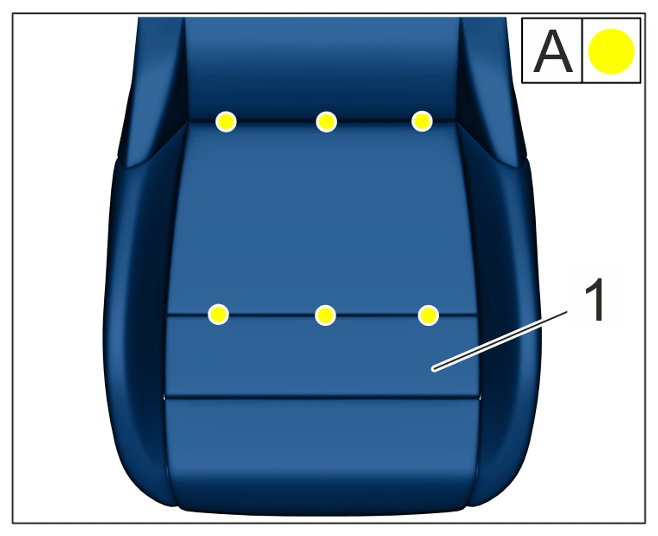

  2. Cut cushion rings -A-  and remove cover for front seat -1-  .
    G15565186Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for front seat
