Removing Front Seat Surface Suction Fan

  1. Remove front seat surface suction fan -3-  .

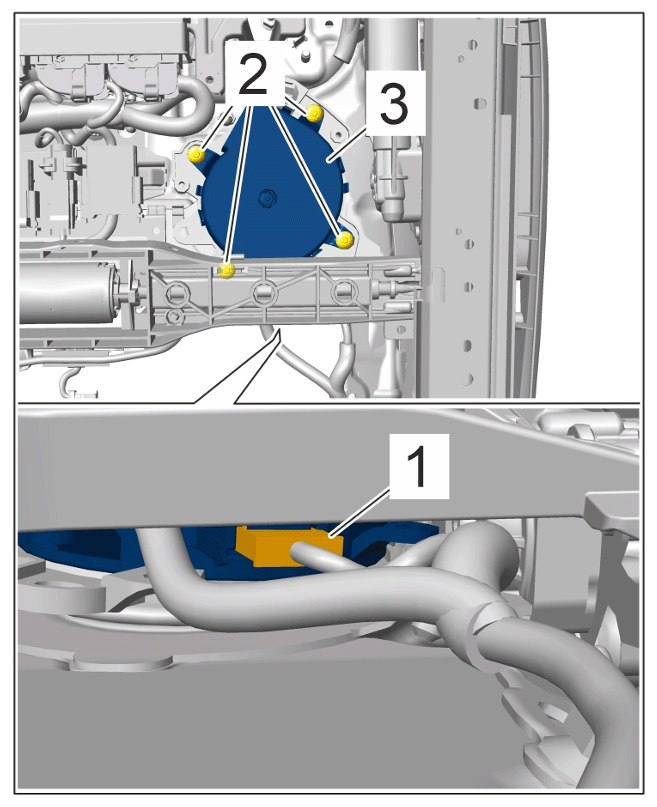

    G15565163Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat-surface suction fan

    1. 1.1 Release and unplug electric plug connection -1-  .
    2. 1.2 Disengage rubber pins -2-  .
    3. 1.3 Remove front seat surface suction fan -3-  .
