66 Exterior Equipment -- Y1A - TAYCAN (Y1A)
>>
WM, 669419 Removing And Installing (B-Pillar) Cover
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

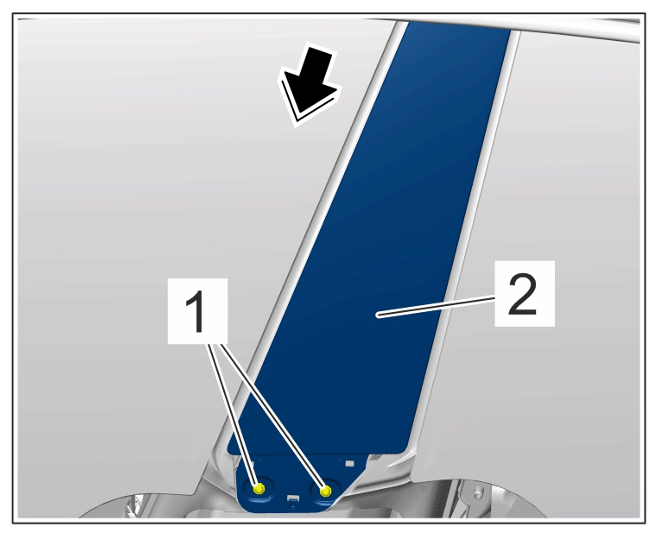

Screws securing side window (centre) to B-pillar
Item 1
Tightening torque
4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Side window (centre)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
