Home >> Porsche >> 2021 >> Taycan Base >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 66 Exterior Equipment -- Y1A - TAYCAN (Y1A) >> WM, 668919 Removing And Installing Rear-View Mirror >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

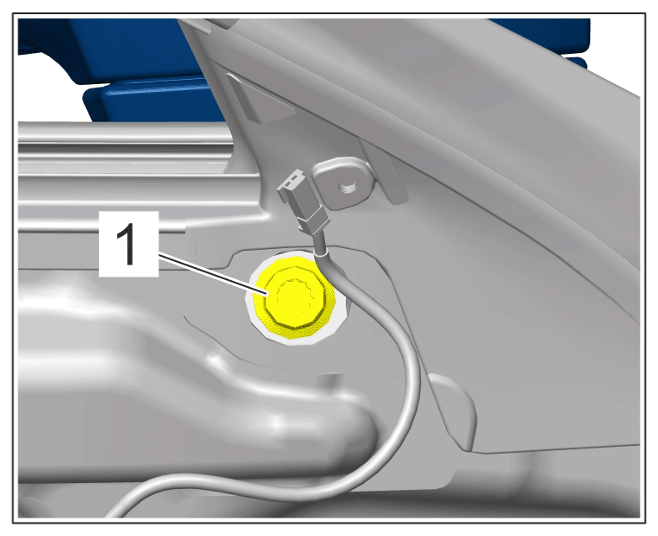

Screw securing rear-view mirror to door body shell Item 1 Tightening torque 23 Nm (17 ftlb.)
G15564430Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
