Removing Rear-View Mirror

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

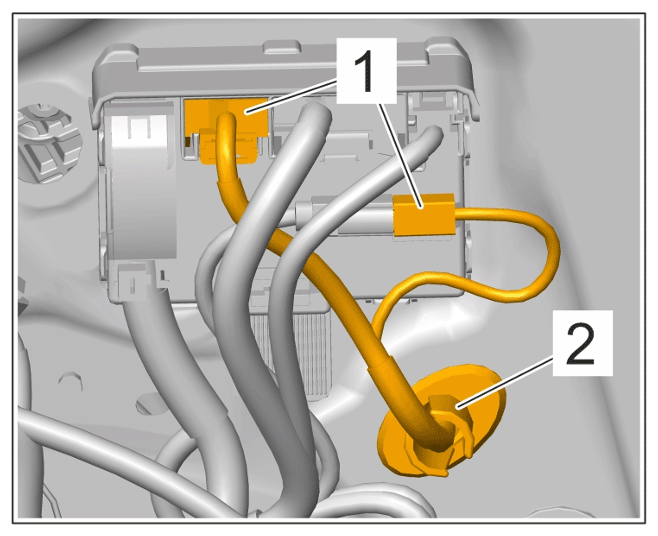

Release and disconnect electric plug connections -1- and press rubber sleeve -2- through the door inner panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

Information

The adhesive pad cannot be pulled off without damaging it and must always be replaced.

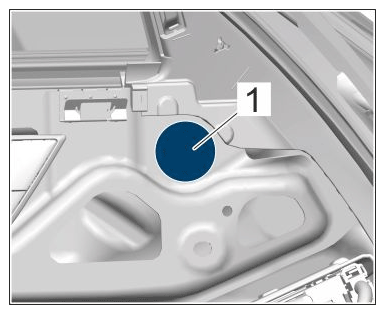

Pull off adhesive pad -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off adhesive pad

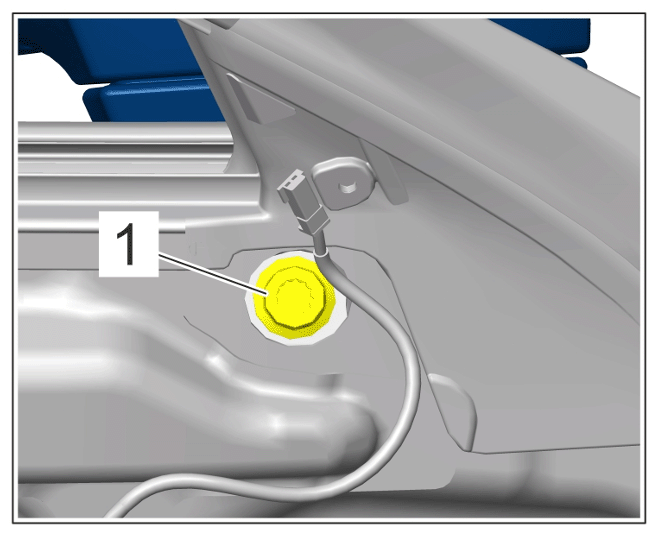

Unscrew screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

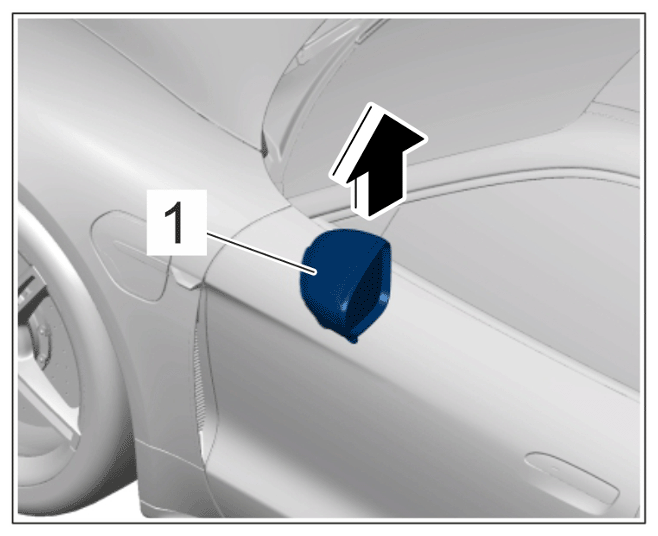

Remove rear-view mirror -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear-view mirror
1. 4.1 Lift rear-view mirror -1- up -arrow- .
2. 4.2 Guide wiring harness out through the door inner panel, channel reinforcement and door outer panel.
3. 4.3 Remove rear-view mirror -1- .
