66 Exterior Equipment -- Y1A - TAYCAN (Y1A)
>>
WM, 667919 Removing And Installing Rear-View Mirror Housing (Mirror Base)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Screw for rear-view mirror housing (mirror base)
Item 1
Tightening torque
0.55 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

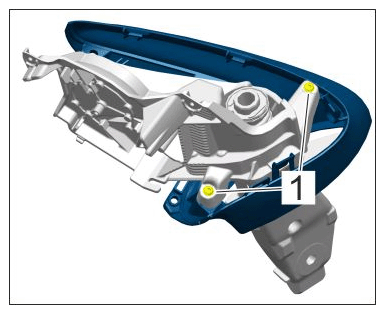

Screws for rear-view mirror housing (mirror base)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
