Removing Mirror Glass

NOTE: Danger of cuts due to sharp-edged components!

Risk of glass splinters in case of unexpected glass breakage during removal.
→ Wear personal protective gear (gloves, safety goggles).

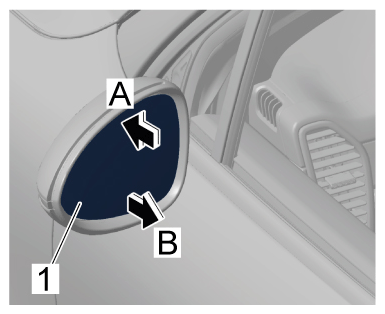

Press the top of the mirror glass -1- inwards -Arrow A- and pull it out carefully at the bottom -Arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mirror glass

Information

The number of electric plug connections can vary, depending on equipment.

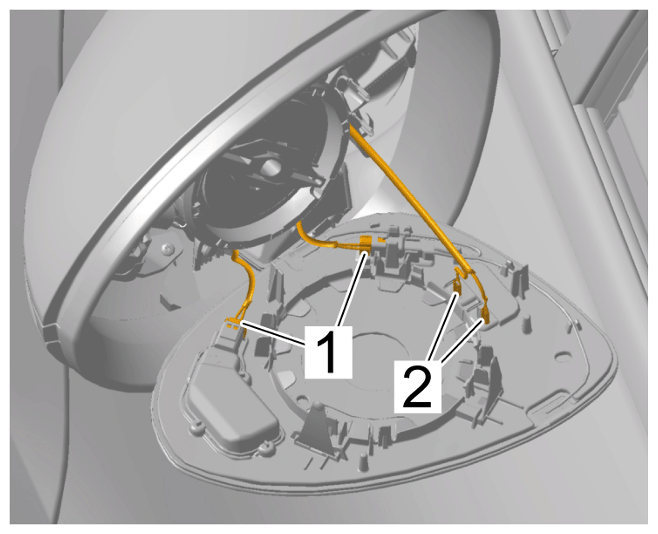

Release and disconnect electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Disconnect electric lines -2- from mirror glass and remove mirror glass.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric lines
