Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

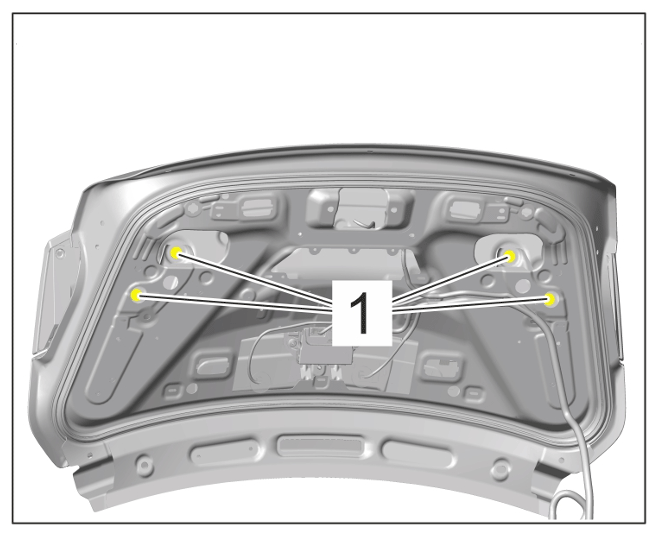

Screws securing spoiler drive to rear lid Item 1 Tightening torque 8 Nm (6 ftlb.)
G15564386Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
