Removing Rear Spoiler
NOTE:
Voltage drop
- Irreparable damage to control unit
- Damage to control unit
- Fault entries in the control unit
- Coding in the control unit is aborted
- Malfunctions in the control unit, even during programming
→ Switch off ignition before disconnecting the control unit.
→ Make sure that the power supply is not interrupted during programming.
→ Connect the battery charger with > current rating of at least 90 A > to the vehicle battery.
Information
The > 9900 - PIWIS Tester instructions take precedence, since the description may be different for subsequent Tester Releases.
The procedure described here has been structured in general terms. Different text or additional information may appear in the > 9900 - PIWIS Tester 3 .
- Extend rear spoiler using PIWIS Tester.

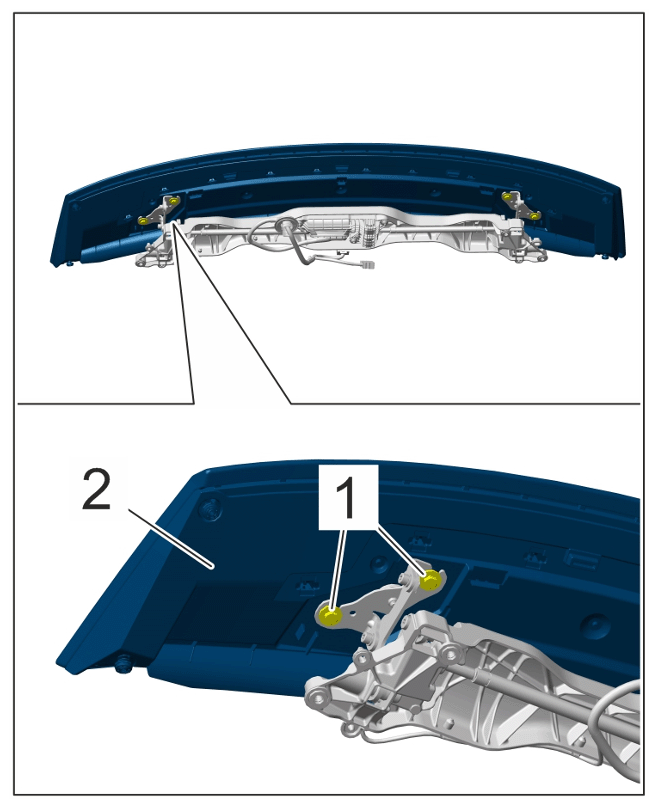

- Unscrew screws -1- and remove rear spoiler -2- .
Screws for rear spoiler
