Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing drive unit to rear spoiler (lower part) Item 1 Tightening torque 8 Nm (6 ftlb.)

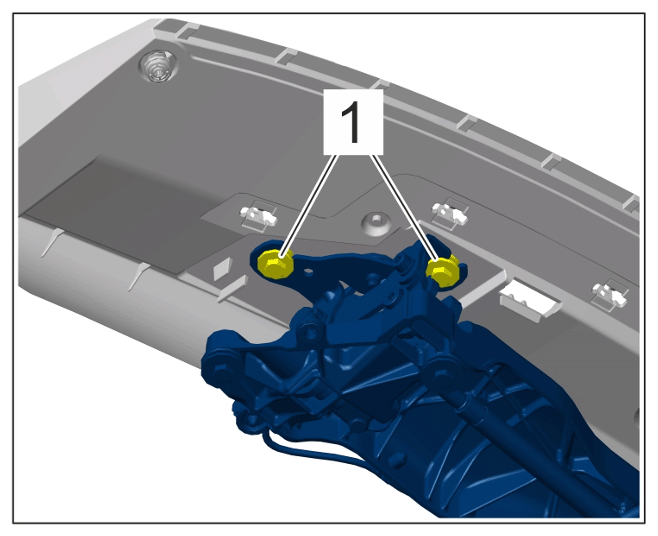

G15564373Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear spoiler (lower part)
