Adjusting Rear Spoiler In X And Y Direction: Notes

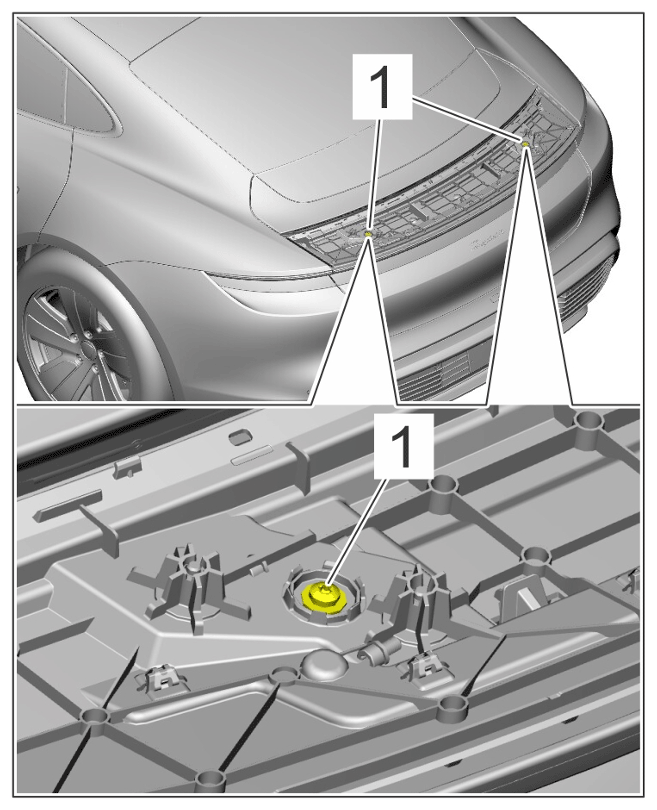

Loosen screws -1- and tighten again hand-tight.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

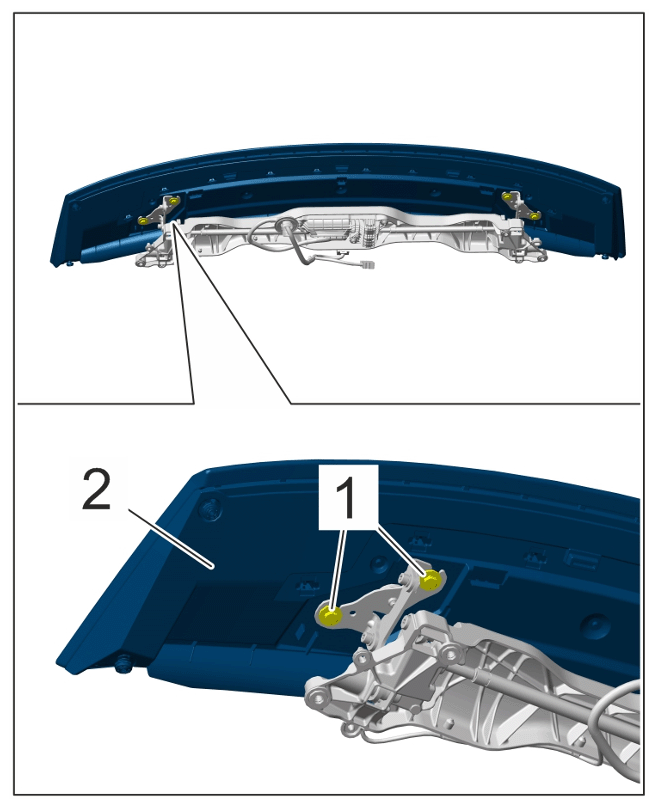

Extend rear spoiler -2- and loosen screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear spoiler
Retract rear spoiler and fit rear spoiler (upper part) on rear spoiler.

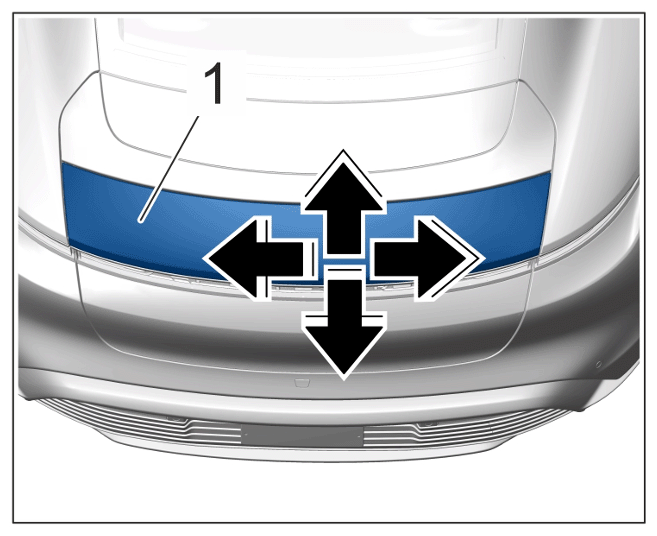

Set gap dimensions by moving -Arrows- the rear spoiler -1-
> 6X00IN GAP DIMENSIONS .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler
Tighten screws to > Tightening torque 4 Nm .
Extend rear spoiler.
Tighten screws to > Tightening torque 8 Nm .
Check gap dimensions.
